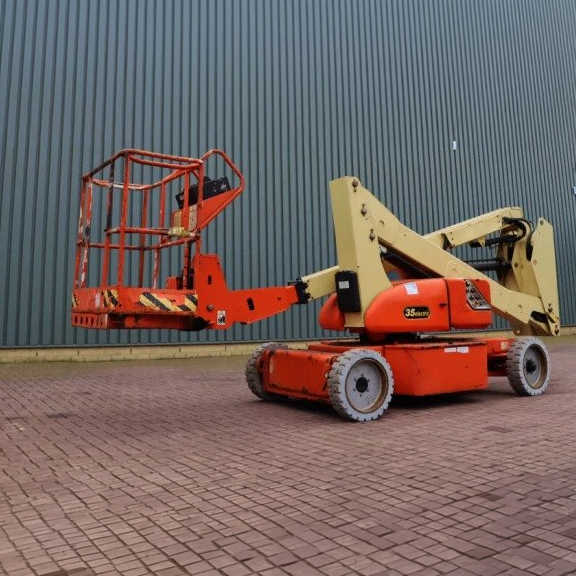

JLG n35e Specs
Quick-reference specifications for the JLG n35e boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 35 ft10.67 m
- Gradeability
- 25%
Performance 8 specs
| Horizontal Outreach | 20 ft 6 in (6.25 m) |
|---|---|
| Up and Over Clearance | 17 ft 11 in (5.46 m) |
| Platform Capacity | 500 lb (227 kg) |
| Platform Rotator | 110° hydraulic |
| Drive Speed Model n | 2.5 mph (4.0 kph) |
| Gradeability | 25% |
| Tyres Model n | solid rubber 22 x 6 x 16 |
| Axle Oscillation | 1 in (0.03 m) |
Dimensions 6 specs
| Platform Height | 35 ft (10.67 m) |
|---|---|
| Platform Size | 26 in x 48 in (.66 m x 1.22 m) |
| Overall Width Model n | 4 ft 11 in (1.50 m) |
| Stowed Height | 6 ft 7 in (2.0 m) |
| Stowed Length | 16 ft 1 in (4.90 m) |
| Wheelbase | 6 ft 7 in (2.0 m) |
Power / Engine 2 specs
| Batteries | eight 6 V 305 amp-hr |
|---|---|
| Brakes | spring applied electrically released discs |
Hydraulics / Fluids 1 spec
| Hydraulic Reservoir | 15.1 L |
|---|
