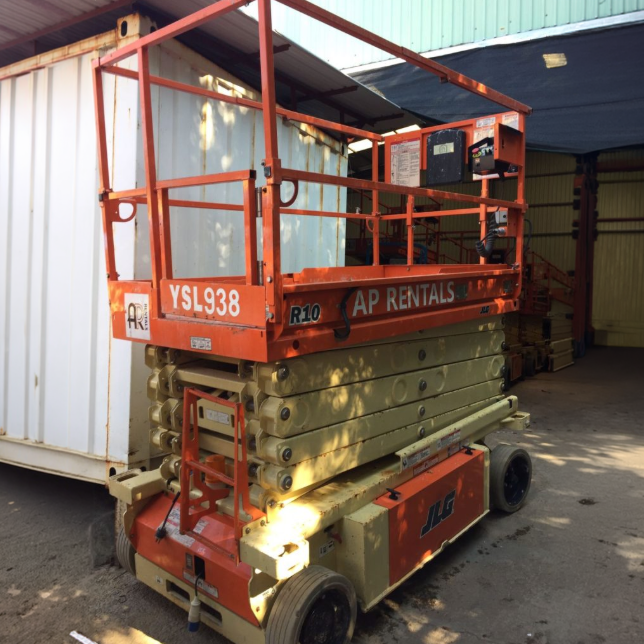

JLG R10 Specs
Quick-reference specifications for the JLG R10 scissor lift, compiled from published specifications.
- Platform Height
- 32 ft9.75 m
- Maximum Working Height
- 38 ft 7 in11.75 m
- Gradeability
- 25%
Performance 10 specs
| Maximum Working Height | 38 ft 7 in (11.75 m) |
|---|---|
| Platform Height | 32 ft (9.75 m) |
| Safe Working Load (SWL) | 705 lb (320 kg) |
| Drive Speed (Elevated) | 0.3 mph (0.5 kph) |
| Drive Speed (Lowered) | 2.5 mph (4.0 kph) |
| Lift Time | 60 sec |
| Lower Time | 60 sec |
| Gradeability | 25% |
| Max Ground Bearing Pressure | 108 psi (7.60 kg/cm²) |
| Break Over Angle | 18.2% |
Dimensions 4 specs
| OverallDimensions(L×W×H) | 7 ft 11 in × 4 ft × 6 ft 6 in (2.41 m × 1.22 m × 1.97 m) |
|---|---|
| Platform Length | 3.5 ft (1.07 m) |
| Platform Width | 7.1 ft (2.16 m) |
| Ground Clearance | 4 in (0.10 m) |
Weight 2 specs
| Gross Vehicle Weight (ANSI) | 6,050 lb (2,744 kg) |
|---|---|
| Gross Vehicle Weight (CE) | 6,050 lb (2,744 kg) |
Power / Engine 2 specs
| Drive Type | 24 V Electric |
|---|---|
| Drive Power | 2.5 kW |
Hydraulics / Fluids 1 spec
| Hydraulic Tank Capacity | 2.38 gal (9 L) |
|---|
