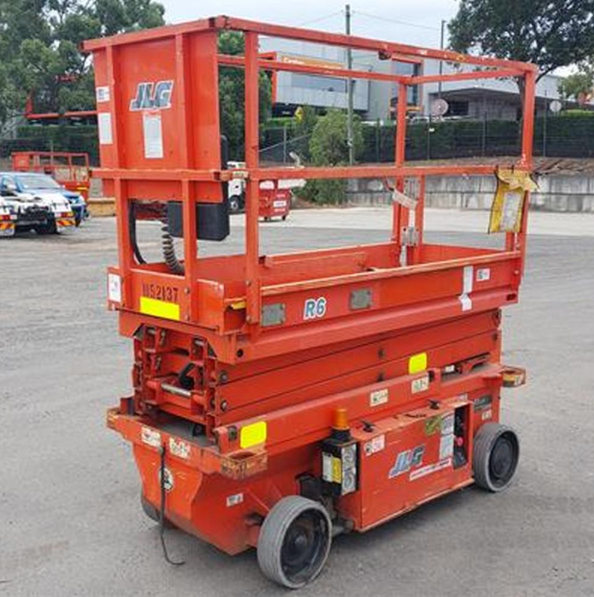

JLG R6 Specs
Quick-reference specifications for the JLG R6 scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 230 kg
- Capacity on Deck Extension
- 120 kg
- Platform Height—Elevated
- 5.64 m
- Platform Height—Lowered
- 1.0 m
Performance 5 specs
| Platform Capacity | 230 kg |
|---|---|
| Capacity on Deck Extension | 120 kg |
| Lift/Lower Time | 25/26 sec |
| Lowered | 4 km/h |
| Gradeability | 25% |
Dimensions 3 specs
| Platform Height—Elevated | 5.64 m |
|---|---|
| Platform Height—Lowered | 1.0 m |
| Maximum Drive Height | 5.64 m |
Weight 2 specs
| Weight | 1,588 kg |
|---|---|
| Ground Bearing Pressure | 8.4 kg/cm2 |
Power / Engine 3 specs
| Batteries | 4 x 6 V, 220 AH |
|---|---|
| Charger | 25 Amp |
| Drive | 24 V DC |
Hydraulics / Fluids 2 specs
| Power Source – Pump | 3.2 cc/rev @ 2,300 psi (178 kg/cm2) |
|---|---|
| Hydraulic System – Capacity | 5 L |
