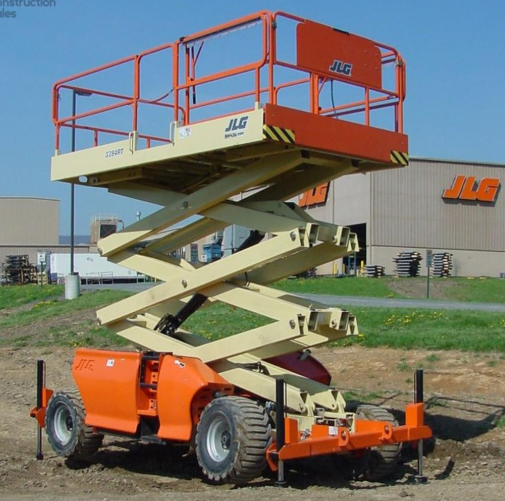

JLG RT3394 Specs
Quick-reference specifications for the JLG RT3394 scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 2,250 lb1,020 kg
- Capacity on Platform Extension
- 500 lb227 kg
- Platform Height (Elevated)
- 33 ft10.06 m
- Platform Height
- 33 ft10.06 m
Performance 13 specs
| Platform Capacity | 2,250 lb (1,020 kg) |
|---|---|
| Stowed Drive Speed | 3.5 mph (4.8 km/h) |
| Capacity on Platform Extension | 500 lb (227 kg) |
| Number of Occupants | 6 |
| Lift / Lower Time | 35/39 seconds |
| Drive Speed (Lowered) | 3.5 mph (4.8 km/h) |
| Drive Speed (Elevated) | 5 mph (.8 km/h) |
| Gradeability | 45% |
| Max Tilt Rating (Side-to-Side) | 3 Degrees |
| Max Tilt Rating (Fore and Aft) | 5 Degrees |
| Turning Radius (Inside) | 8 ft 10.5 in (2.7 m) |
| Turning Radius (Outside) | 19 ft 5.5 in (5.9 m) |
| Platform Extension | 4 ft (1.2 m) |
Dimensions 11 specs
| Platform Height | 33 ft (10.06 m) |
|---|---|
| Machine Width | 7 ft 7 in (2.3 m) |
| Platform Height (Elevated) | 33 ft (10.06 m) |
| Machine Length | 12 ft 10 in (3.9 m) |
| Ground Clearance | 13.6 in (34.5 cm) |
| Wheelbase | 9 ft 9 in (3.0 m) |
| Platform Height (Rails Lowered) | 6 ft 5.75 in (1.97 m) |
| Platform Railing Height | 43.5 in (1.1 m) |
| Machine Height | 9 ft 1 in (2.77 m) |
| Platform Width | 70.5 in (1.8 m) |
| Platform Length | 149.8 in (3.8 m) |
Weight 1 spec
| Ground Bearing Pressure | 73 psi (5.1 kg/cm²) |
|---|
Power / Engine 2 specs
| Dual Fuel – Kubota WG972 | 31 hp (23.2 kW) |
|---|---|
| Diesel Fuel – Kubota D1305 | 24.8 hp (18.5 kW) |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 22 gal (83.3 L) |
|---|---|
| Hydraulic System – Capacity | 32 gal (121.4 L) |
