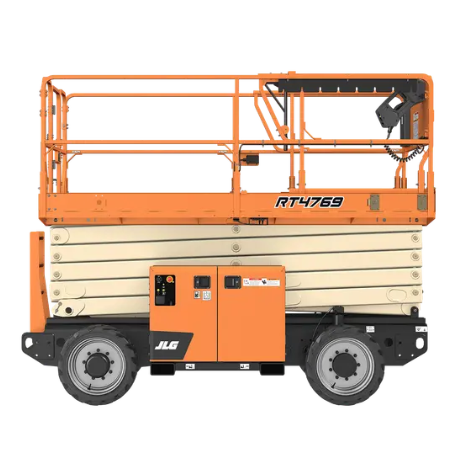

JLG RT4769 Specs
Quick-reference specifications for the JLG RT4769 scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 800 lb363 kg
- Capacity on Platform Extension
- 300 lb136 kg
- Platform Height (Elevated)
- 47 ft14.3 m
- Platform Height
- 47 ft14.3 m
Performance 12 specs
| Platform Capacity | 800 lb (363 kg) |
|---|---|
| Stowed Drive Speed | 3 mph (4.82 km/h) |
| Capacity on Platform Extension | 300 lb (136 kg) |
| Lift / Lower Time | 81/55 seconds |
| Drive Speed (Lowered) | 3 mph (4.82 km/h) |
| Drive Speed (Raised) | 0.3 mph (0.48 km/h) |
| Gradeability | 35% |
| Max Tilt Rating (Side-to-Side) | 2.5 Degrees |
| Max Tilt Rating (Fore and Aft) | 3 Degrees |
| Turning Radius (Inside) | 83 in (2 m) |
| Turning Radius (Outside) | 175 in (4.44 m) |
| Platform Extension | 42 in (1.07 m) |
Dimensions 11 specs
| Platform Height | 47 ft (14.3 m) |
|---|---|
| Machine Width | 69.3 in (1.76 m) |
| Platform Height (Elevated) | 47 ft (14.3 m) |
| Machine Length | 139 in (3.53 m) |
| Ground Clearance | 10.1 in (25.7 cm) |
| Wheelbase | 81.3 in (2.07 m) |
| Platform Height (Lowered) | 5 ft 4 in (1.62 m) |
| Platform Railing Height | 44.7 in (1.14 m) |
| Machine Height | 109.1 in (2.77 m) |
| Platform Width | 63 in (1.6 m) |
| Platform Length | 130.5 in (3.3 m) |
Weight 1 spec
| Ground Bearing Pressure | 56 psi (3.94 kg/cm2) |
|---|
Power / Engine 1 spec
| Dual Fuel | – Kubota WG972-GL-E4 31 hp 31 hp (23.2 kW) |
|---|
Hydraulics / Fluids 1 spec
| Fuel Tank Capacity | 10 gal (38 L) |
|---|
