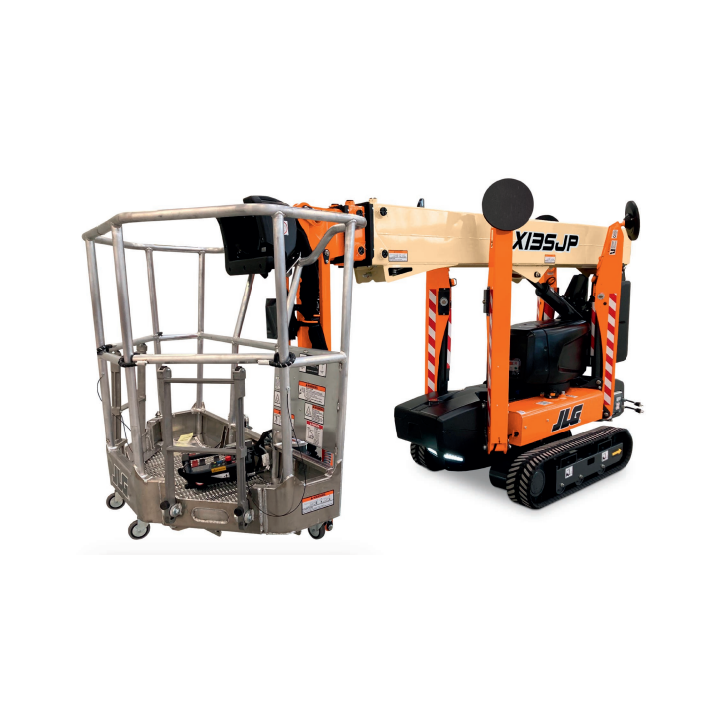

JLG X13SJP Specs
Quick-reference specifications for the JLG X13SJP boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 230 kg
- Platform Height
- 10.9 m
- Working Height
- 12.9 m
- Gradeability
- 28.7%
Performance 11 specs
| Working Height | 12.9 m |
|---|---|
| Horizontal Outreach (Std Platform) | 5.75 m |
| Horizontal Working Outreach (Std Platform) | 6.4 m |
| Swing (non continuous) | 360° |
| Platform Capacity | 230 kg |
| Jib – Range of articulation | 89° (+0/-89° ) |
| Maximum drive speed (with standard second speed) Electric | 3.2 km/h |
| Gradeability | 28.7% |
| Maximum operating slope | 11° |
| Max. Approach / Depart angles | Front 20° / Rear 29.5° |
| AC electric motor | 2.2 KW 50Hz 230 V |
Dimensions 8 specs
| Platform Height | 10.9 m |
|---|---|
| Jib – Overall Length | 1.49 m |
| Platform size (standard 2 persons) | 0.60 m x 1.31 m |
| Stowed height (on tracks) | 1.98 m |
| Outrigger footprint – total | 3.18 m x 2.81 m |
| Airline to platform | 12,6 mm |
| Width of Undercarriage (Retracted/Extended) | 0.75 m/ 1.10 m |
| Track size – Low profile non marking tracks | 1.47 m x 0.18 m x 0.36 m |
Weight 1 spec
| Machine weight (with standard platform) | 2,050 kg |
|---|
Power / Engine 2 specs
| Batteries | Lithium 4.15 kWh- 48 V |
|---|---|
| Onboard battery charger | 220 V (+/- 30 V) 50-60 Hz |
Hydraulics / Fluids 1 spec
| Hydraulic oil tank capacity | 24 L |
|---|
