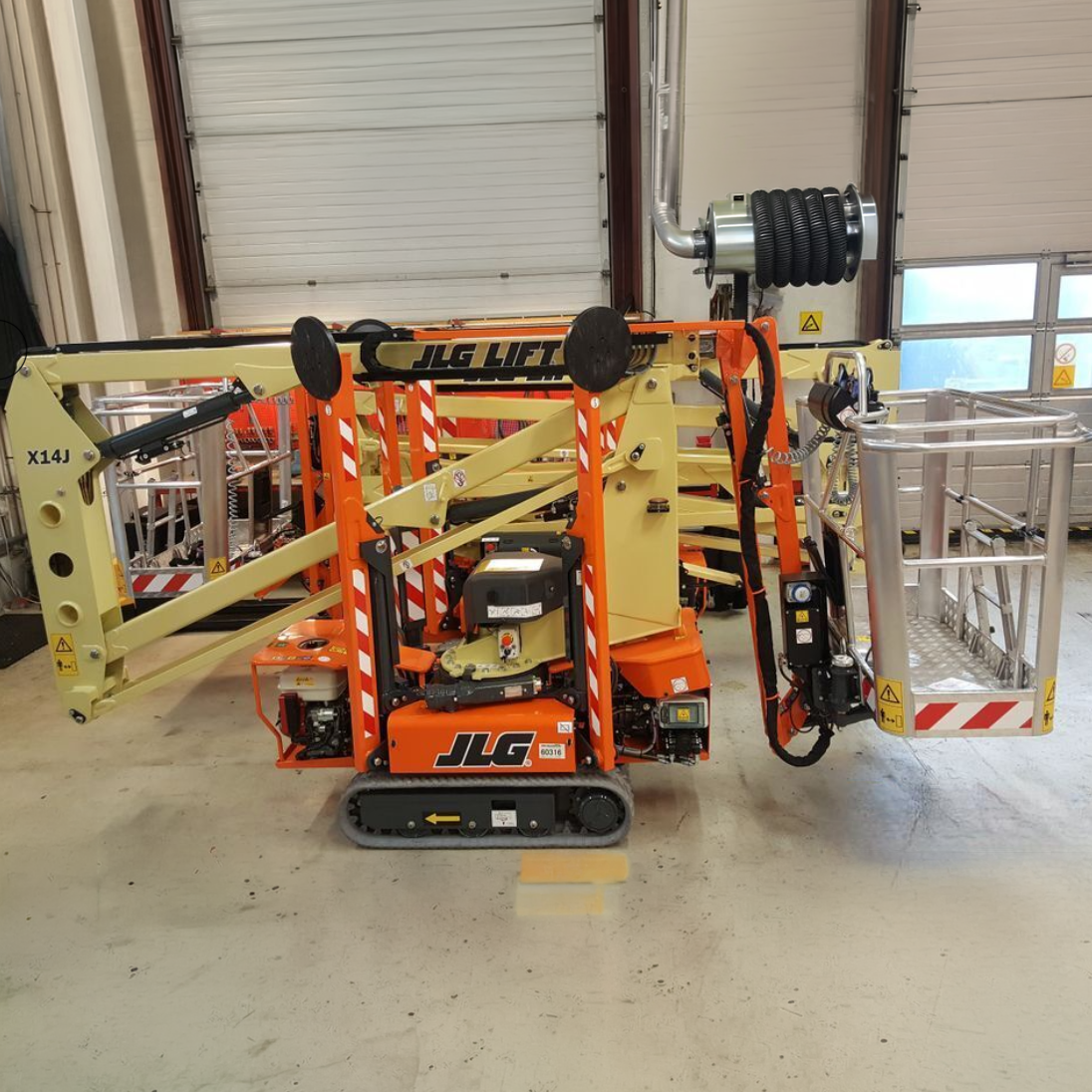

JLG X14J Specs
Quick-reference specifications for the JLG X14J boom lift, taken from the manufacturer’s spec sheet.
- Platform capacity – unrestricted
- 120 kg
- Working Height
- 13.80 m
- Gradeability
- 28.7%
Performance 10 specs
| Working Height | 13.80 m |
|---|---|
| Horizontal Working Outreach | 6.76 m |
| Platform capacity – unrestricted | 120 kg |
| Platform capacity – restricted | 200 kg |
| Swing (non continuous) | 360° |
| Jib – range of articulation (+/-) | 83° (+0° / -83°) |
| Gradeability | 28.7% |
| Maximum operating slope | 10° |
| Max. Approach / Depart angles | Front 20° / Rear 20° |
| Basket rotation | 124° (+/-62°) |
Dimensions 9 specs
| Up & Over Height | 5.58 m |
|---|---|
| Jib – overall length | 1.56 m |
| Platform size (standard 2 persons) | 0.69 m x 1.34 m |
| Stowed width (with std. 2P platform) | 1.34 m |
| Stowed width (without platform) | 0.79 m |
| Stowed height (on tracks) | 2.07 m |
| Stowed length (on tracks) | 4.02 m |
| Outrigger footprint | 2.87 m x 2.91 m |
| Width of Undercarriage (Retracted/Extended) | 0.79 m / 1.09 m |
Weight 2 specs
| Machine weight (with standard platform) | 1,398 kg |
|---|---|
| Max. ground bearing pressure (on outriggers) | 1.74 kg/cm² |
Power / Engine 2 specs
| Max. drive speed (single drive speed) Engine | 1.3 km/h |
|---|---|
| AC electric motor | 230 V, 50Hz, 2.2 kW |
Hydraulics / Fluids 1 spec
| Hydraulic oil tank capacity | 25 L |
|---|
