Forklift · Linde

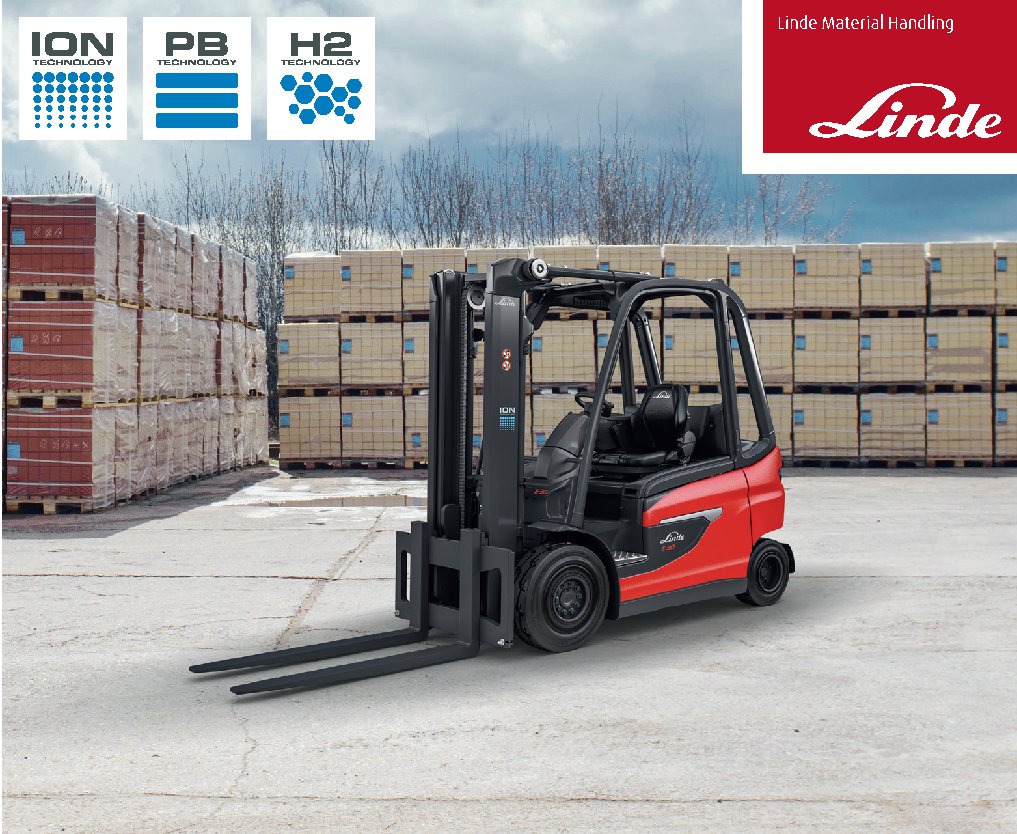

Linde E35HL Specs
Quick-reference specifications for the Linde E35HL forklift, from the manufacturer’s spec sheet and published specifications.
Performance 8 specs
| Fork carriage to ISO 2328, class / type A, B | 2A |
|---|---|
| Load Capacity | 7,716 lb (3.5 t) |
| Travel Speed (with/without load) | 20 km/h |
| Hoisting Speed (with load) | 0.39 m/s |
| Hoisting Speed (without load) | 0.54 m/s |
| Lowering Speed (with load) | 0.58 m/s |
| Turning Radius | 6.82 ft (2.079 m) |
| Load Center Distance | 500 mm |
Dimensions 6 specs
| Tyre size, rear | 200 / 50-10 |
|---|---|
| Overall Width | 52.91 in (1,346 mm) |
| Construction Height (Mast Lowered) | 91.54 in (2,325 mm) |
| Lifting Height (Standard) | 10.81 ft (3.295 m) |
| Mast/Fork Tilt (forward/backward) | 5.0°/8.0° |
| Fork Carriage Width | 53.15 in (1,350 mm) |
Weight 2 specs
| Weight (without battery) | 8,675 lb (3.935 t) |
|---|---|
| Battery Weight | 4,107 lb (1.863 t) |
Power / Engine 4 specs
| Battery according to DIN 43531 / 35 / 36 A, B, C, no | 43 536 A |
|---|---|
| Battery Voltage | 80 V |
| Traction Motor | 22 kW |
| Hoist Motor | 17 kW |
Hydraulics / Fluids 2 specs
| Auxiliary Hydraulic Max Pressure | 3,552.5 psi (24,500 kPa) |
|---|---|
| Auxiliary Hydraulic Max Flow Rate | 50 l/min |
