Forklift · Linde

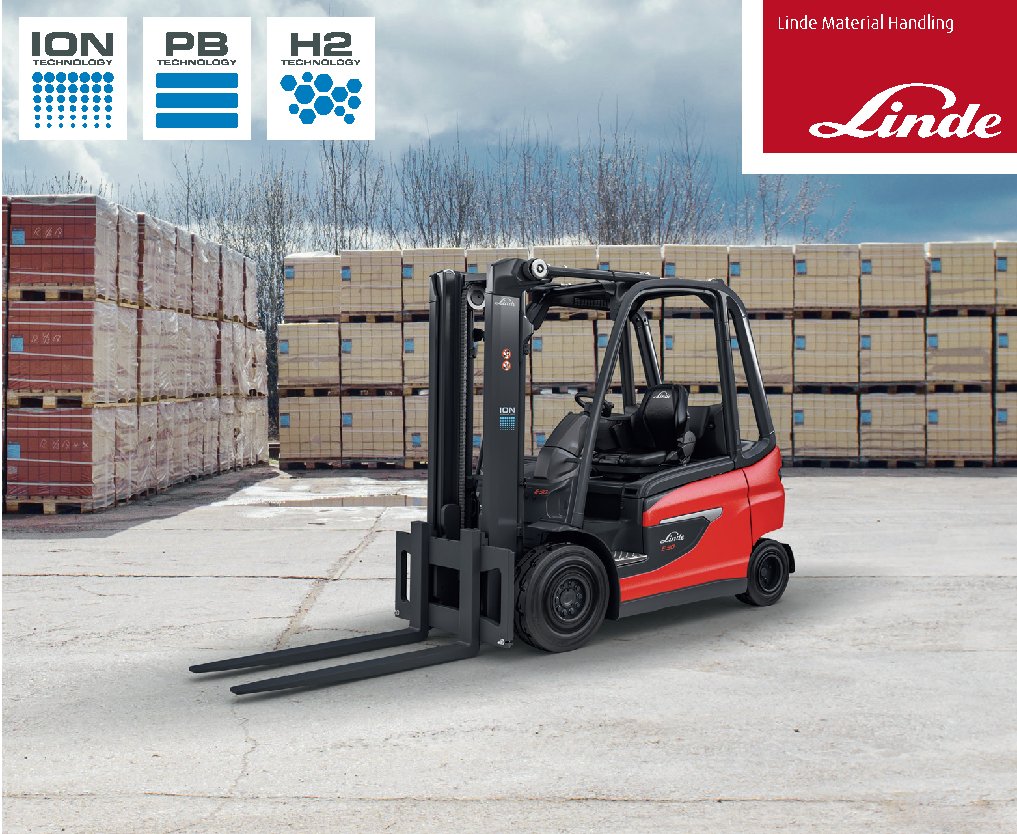

Linde E35L Specs
Quick-reference specifications for the Linde E35L forklift, from the manufacturer’s spec sheet and published specifications.
Performance 8 specs
| Fork carriage to ISO 2328, class / type A, B | 2A |
|---|---|
| Load Capacity | 7,000 lb (3.5 t) |
| Turning Radius | 6.95 ft (2.118 m) |
| Lifting Height | 14.76 ft (4.5 m) |
| Travel Speed (with/without load) | 20 km/h |
| Hoisting Speed (with load) | 0.39 m/s |
| Hoisting Speed (without load) | 0.51 m/s |
| Lowering Speed (with load) | 0.56 m/s |
Dimensions 4 specs
| Tyre size, rear | 200 / 50-10 |
|---|---|
| Total Width | 52 in (1,322 mm) |
| Construction Height (mast lowered) | 87.8 in (2,237 mm) |
| Load Center | 19.7 in (500 mm) |
Weight 3 specs
| Total Weight (without battery) | 8,947 lb (4.058 t) |
|---|---|
| Battery Weight | 3,212 lb (1.458 t) |
| Total Weight (with battery) | 12,159 lb (5.516 t) |
Power / Engine 4 specs
| Battery according to DIN 43531 / 35 / 36 A, B, C, no | 43 536 A |
|---|---|
| Battery Voltage | 80 V |
| Traction Motor | 18 kW |
| Hoist Motor | 22 kW |
