Forklift · Linde

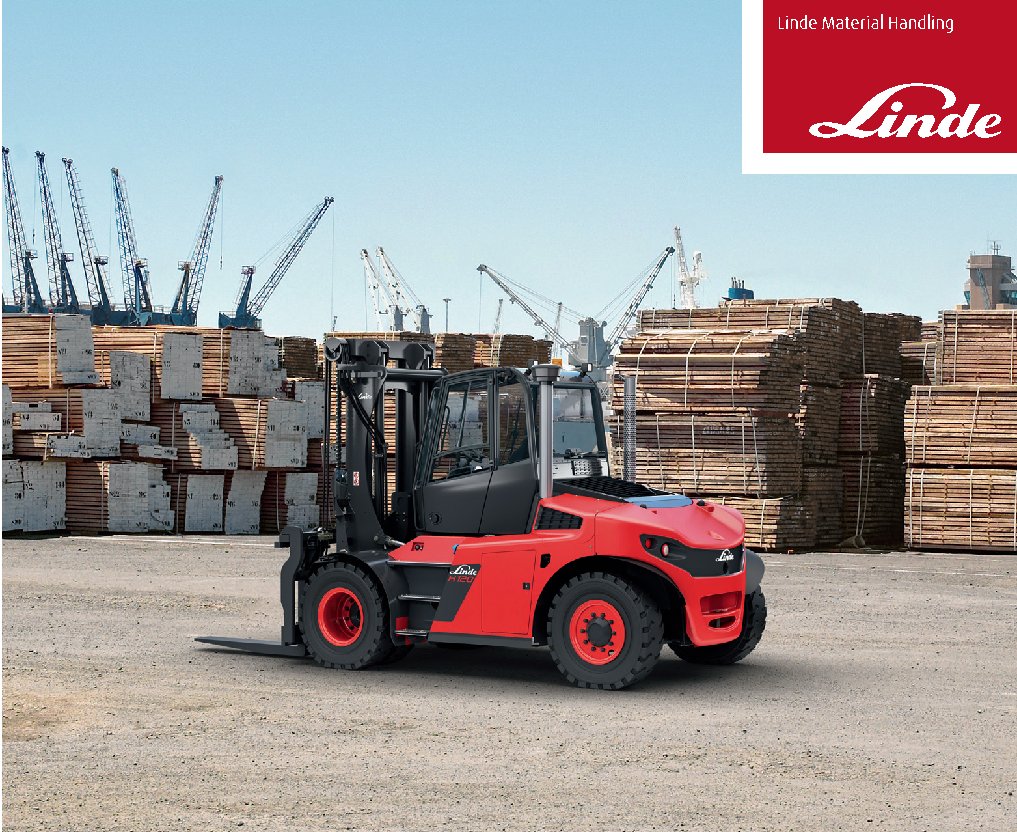

Linde H100-600 Specs
Quick-reference specifications for the Linde H100-600 forklift, from the manufacturer’s spec sheet and published specifications.
- Operating Weight
- 40,336 lb18.297 t
Performance 7 specs
| Cummins QSB 6.7 | Cummins QSB 6.7 |
|---|---|
| Load Capacity | 22,046 lb (10 t) |
| Load Centre Distance | 23.6 in (600 mm) |
| Travel Speed with Load | 17.3 mph (27.9 km/h) |
| Travel Speed without Load | 18.6 mph (30 km/h) |
| Maximum Climbing Ability | 22.5% |
| Turning Radius | 13.43 ft (4.092 m) |
Dimensions 6 specs
| Figures in ( ) if fork length | < or = 1000 mm |
|---|---|
| Tyre size, rear | 12.00 – 20 / 20 PR |
| Wheelbase | 9.7 ft (2960 mm) |
| Total Width | 8.35 ft (2545 mm) |
| Construction Height | 9.88 ft (3010 mm) |
| Lifting Height | 13.1 ft (4 m) |
Weight 1 spec
| Operating Weight | 40,336 lb (18.297 t) |
|---|
Power / Engine 4 specs
| Engine Type | QSB6.7 |
|---|---|
| Engine Power | 200 hp (149 kW) |
| Displacement | 6.7 L |
| Number of Cylinders | 6 |
