Forklift · Linde

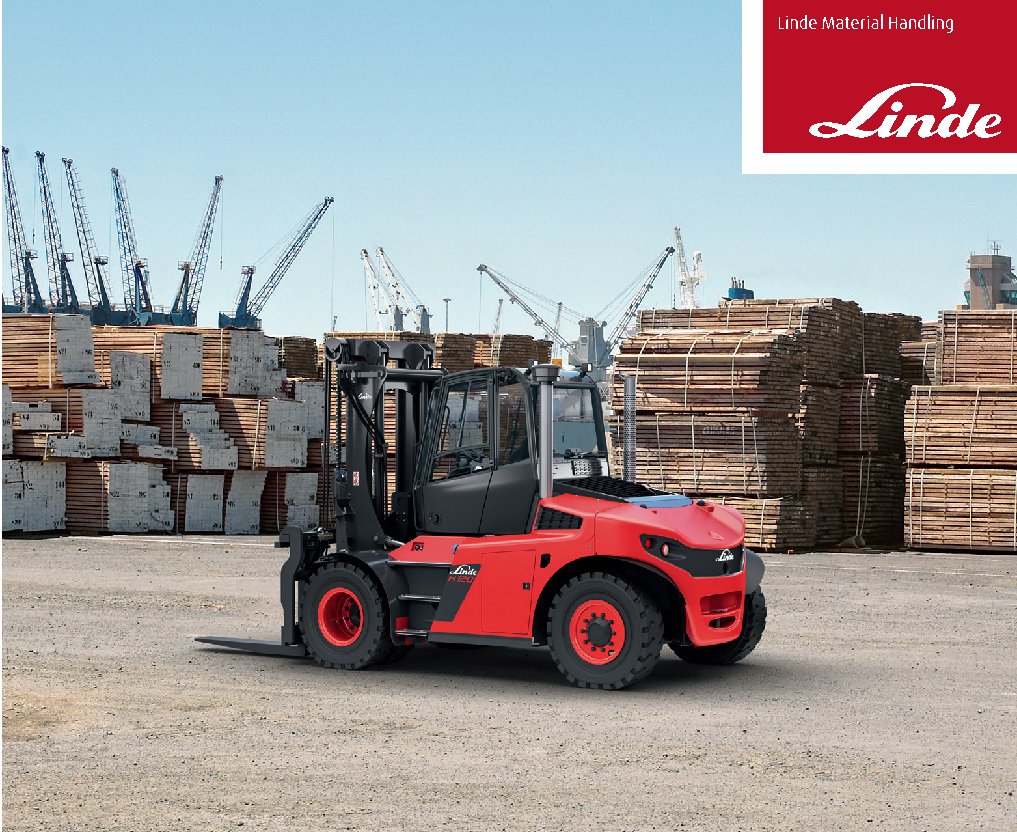

Linde H180 Specs
Quick-reference specifications for the Linde H180 forklift, from the manufacturer’s spec sheet and published specifications.
- Operating Weight
- 66,138.7 lb29,975 kg
Performance 10 specs
| Cummins QSB 6.7 | Cummins QSB 6.7 |
|---|---|
| Load Capacity | 39,683.21 lb (18 t) |
| Max Fork Height | 13.13 ft (4 m) |
| Lift Speed | 59.06 ft/min |
| Lower Speed | 78.75 ft/min |
| Max Speed | 17.1 mph |
| Turning Radius | 17.33 ft (5.28 m) |
| Load Center | 47.25 in (1,200 mm) |
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 10 degrees |
Dimensions 9 specs
| Figures in ( ) if fork length | < or = 1000 mm |
|---|---|
| Tyre size, rear | 12.00 – 20 / 20 PR |
| Length to Fork Face | 19.67 ft (5.99 m) |
| Overall Width | 9.91 ft (3.02 m) |
| Overall Height – Mast Lowered | 12.5 ft (3.81 m) |
| Height to Top of Overhead Guard | 10.77 ft (3.28 m) |
| Wheelbase | 13.13 ft (4 m) |
| Ground Clearance | 11.82 in (30 cm) |
| Max Fork Spread | 100.4 in (2,550 mm) |
Weight 1 spec
| Operating Weight | 66,138.7 lb (29,975 kg) |
|---|
Power / Engine 5 specs
| Engine Model | DI 956A |
|---|---|
| Number of Cylinders | 6 |
| Displacement | 549.3 cu in (9 l) |
| Power | 221.3 hp (165 kW) |
| Power Measured @ | 2200 rpm |
