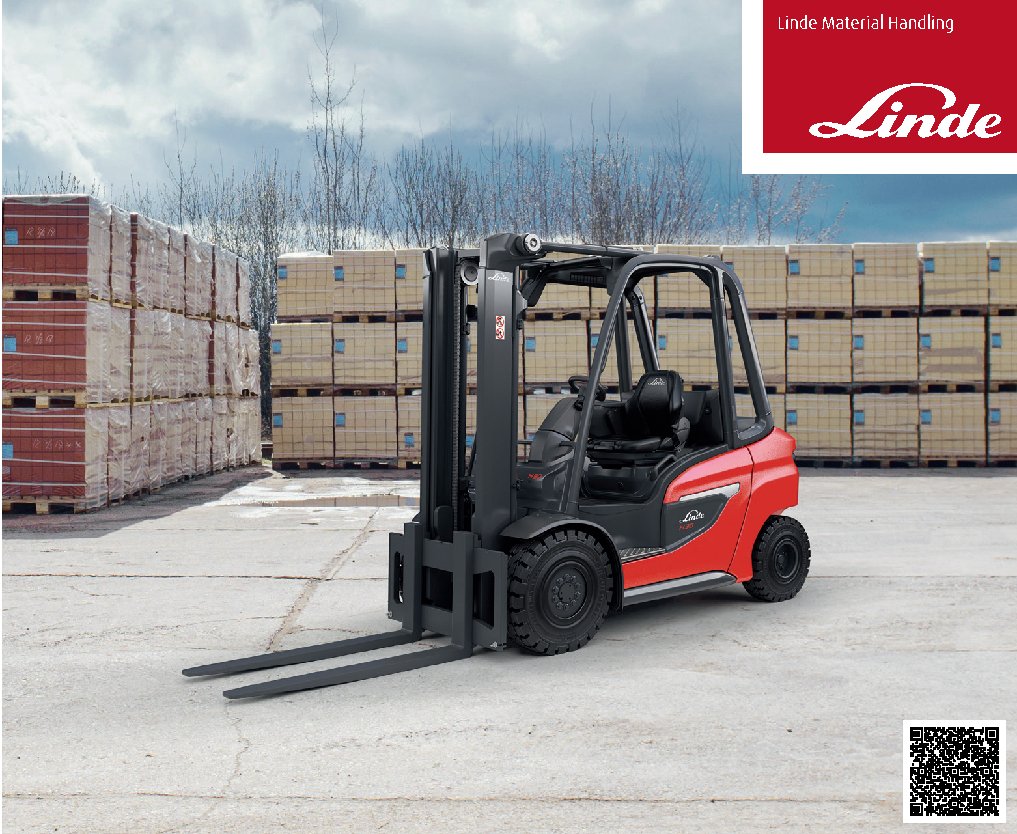

Linde H30D Specs
Quick-reference specifications for the Linde H30D forklift, from the manufacturer’s spec sheet and published specifications.
- Mast Lift Capacity
- 6,000 lb2,721 kg
- Gradeability (3-minute rating)
- 27-33%
Performance 8 specs
| Fork carriage to ISO 2328, class / type A, B | 3A |
|---|---|
| Load Center | 24 in (500 mm) |
| Travel Speed (Full Load) | 13.6 mph (22 km/h) |
| Lifting Speed (Full Load) | 104 fpm (0.53 m/s) |
| Lowering Speed (Full Load) | 110 fpm (0.54-0.56 m/s) |
| Gradeability (3-minute rating) | 27-33% |
| Turning Radius (outside) | 96.1 in (2.44 m) |
| Tilt Range (forward/backward) | 5/5 degrees or 5.0/8.0 degrees |
Dimensions 8 specs
| Tyre size, rear | 6.50 – 10 |
|---|---|
| Overall Length | 147.8 in (3.75 m) |
| Overall Width | 49.4 in (1,256 mm) |
| Length to Fork Face | 108.5 in (2,755 mm) |
| Mast Lowered Height (Min-Max) | 56.9-80.5 in (1.45-2.04 m) |
| Overhead Guard Height (Min-Max) | 89.5-110.8 in (2.27-2.81 m) |
| Basic Right-Angle Stack | 161.8 in (4.11 m) |
| Wheelbase | 75.9 in (1.93 m) |
Weight 1 spec
| Weight Distribution – Full Load (Front/Rear) | 14,676 lb / 2,156 lb |
|---|
Power / Engine 3 specs
| Engine Model | Deutz TCD2.2 L3 or VW CPYB/CPYC |
|---|---|
| Engine Power | 44-45 kW |
| Engine Displacement | 2.194 L or 1.968 cc depending on variant |
Hydraulics / Fluids 1 spec
| Mast Lift Capacity | 6,000 lb (2,721 kg) |
|---|
