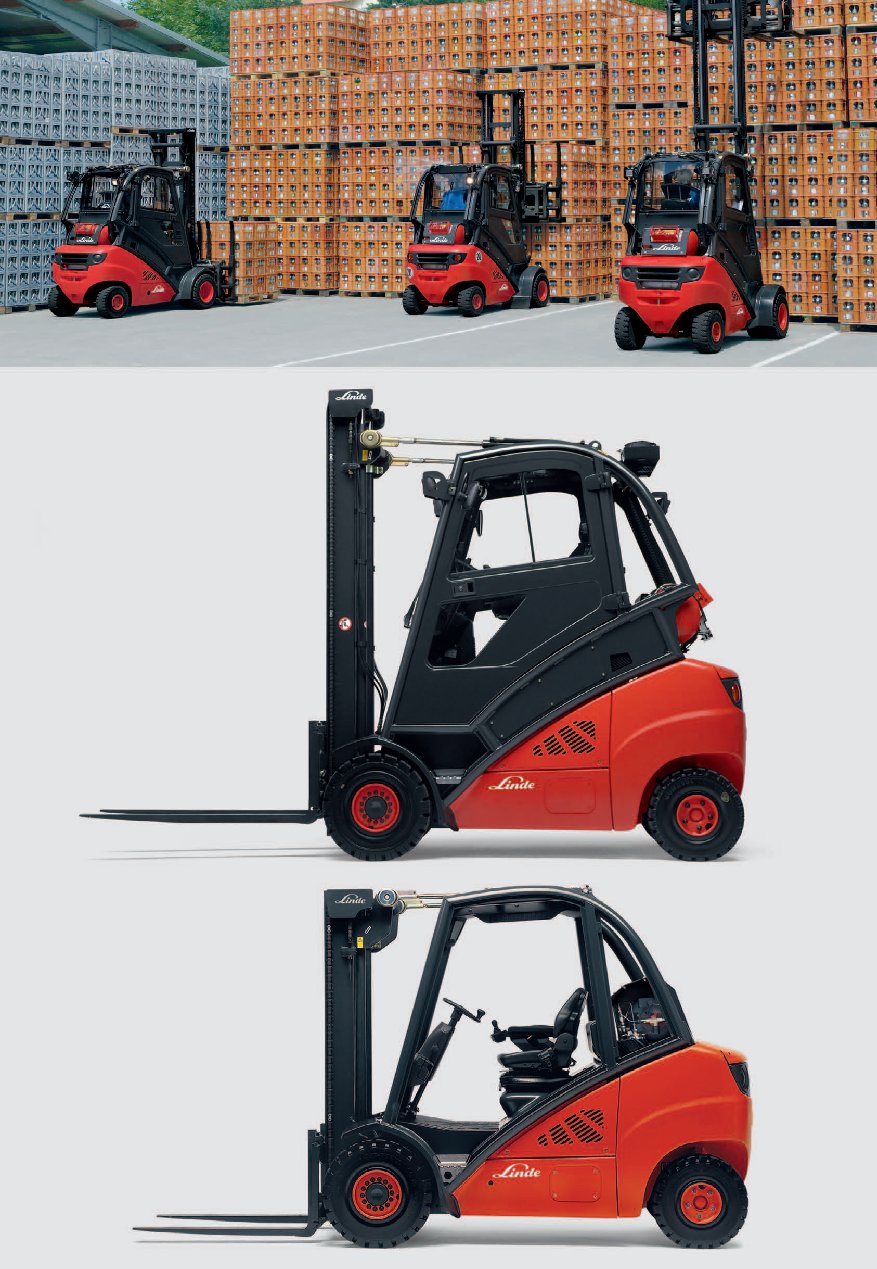

Linde H30T Specs

Quick-reference specifications for the Linde H30T forklift, taken from the manufacturer’s spec sheet.

Performance 11 specs

Load capacity Q	3.0 t
Mast/fork carriage tilt, forward/backward a/b	5.0 / 8.0 °
Turning radius Wa	2444 mm
Travel speed, with/without load	22 / 22 km/h
Lifting speed, with/without load	0.47 / 0.48 m/s
Lowering speed, with/without load	0.52 / 0.54 m/s
Tractive force, with/without load	19790 / 14990 N
Acceleration time, with/without load	6.1 / 5.3 s
Service brake	hydrostatic
Rated speed	2600 1/min
Noise level at operator’s ear	77.0 dB (A)

Load centre c	500 mm
Axle centre to fork face x	445 mm
Wheelbase y	1930 mm
Tyres	rubber, SE, pneumatic, polyurethane
Tyre size, front	250/75-12
Tyre size, rear	225/75-10
Track width, front b	1008 mm
Track width, rear b	932 mm
Height of mast, lowered h	2264 mm
Free lift h	150 mm
Lift h	3050 mm
Height of mast, extended h	3840 mm
Height of overhead guard (cabin) h	2210 mm
Height of seat/stand-on platform h	1105 mm
Towing coupling height h	698 mm
Overall length l	3755 mm
Length to fork face l	2755 mm
Overall width b1/b	1256 mm
Fork dimensions s/e/l	45 x 100 x 1000 mm
Fork carriage to ISO 2328, class/type	3A
Width of fork carriage b	1150 mm
Ground clearance, below mast m	119 mm
Ground clearance, centre of wheelbase m	173 mm
Aisle width with pallet 1000 x 1200 across forks Ast	4089 mm
Aisle width with pallet 800 x 1200 along forks Ast	4289 mm
Minimum pivoting point distance b	580 mm

Service weight	4200 kg
Axle load with load, front/rear	6379 / 821 kg
Axle load without load, front/rear	1910 / 2290 kg

Engine manufacturer/type	VW BEF
Engine performance according to ISO 1585	39 kW
Number of cylinders/displacement	4 / 1984 cm3
Fuel consumption according to VDI cycle	2.9 kg/h

Type of drive control	hydrost./stepl.
Operating pressure for attachments	170 bar
Oil flow for attachments	38 l/min
