Forklift · Linde

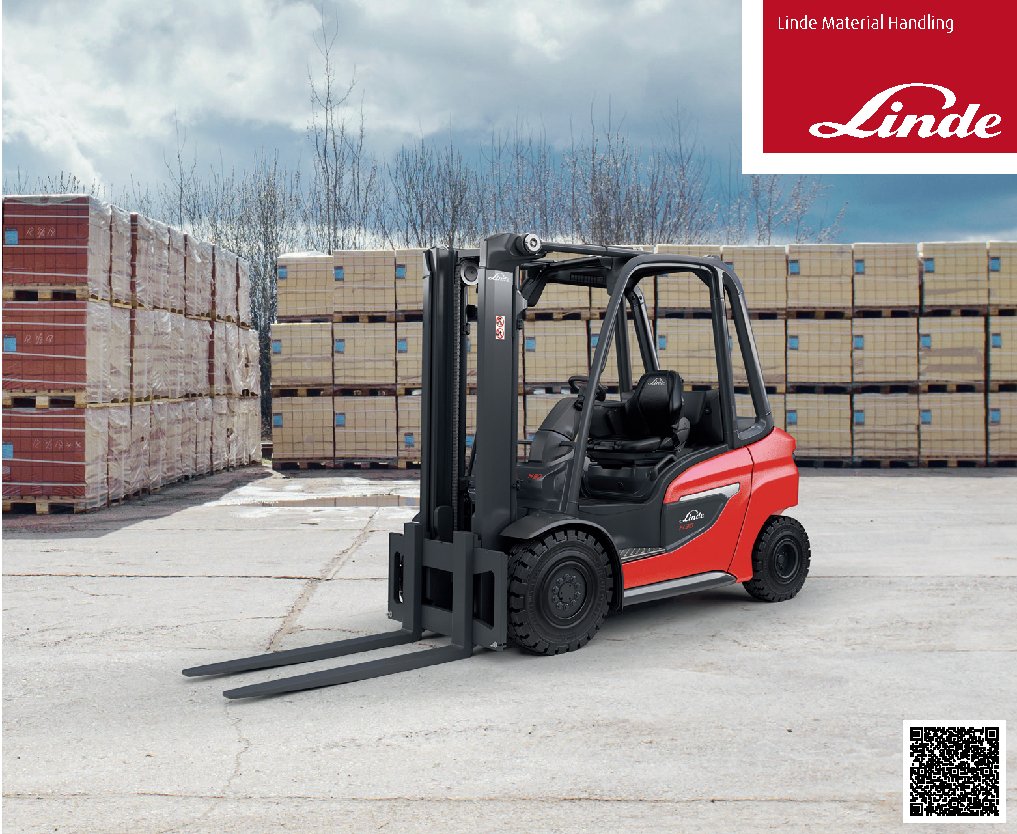

Linde H35D Specs
Quick-reference specifications for the Linde H35D forklift, from the manufacturer’s spec sheet and published specifications.
- Operating Weight
- 10,317-10,980 lb4.68-4.98 t
Performance 8 specs
| Fork carriage to ISO 2328, class / type A, B | 3A |
|---|---|
| Nominal Load Capacity (at COG) | 7,716 lb (3.5 t) |
| Load Center | 24 in (500 mm) |
| Travel Speed (loaded/unloaded) | 13.7 mph (22 km/h) |
| Hoisting Speed (loaded/unloaded) | 0.53/0.55 m/s |
| Lowering Speed (with load) | 0.54-0.56 m/s |
| Maximum Climbing Ability | 28-30% |
| Turning Radius | 97.5 in (2.48 m) |
Dimensions 8 specs
| Tyre size, rear | 6.50 – 10 |
|---|---|
| Overall Length | 149.6 in (3.80 m) |
| Overall Width | 49.5 in (1.25 m) |
| Height to Top of Overhead Guard | 87 in (2.21 m) |
| Construction Height | 87-91 in (2.21-2.32 m) |
| Lifting Height | 10.8-18 ft (3.3-5.5 m) |
| Length to Fork Face | 110 in (2.795 m) |
| Wheelbase | 77.3 in (1.965 m) |
Weight 1 spec
| Operating Weight | 10,317-10,980 lb (4.68-4.98 t) |
|---|
Power / Engine 2 specs
| Engine Power | 59-60 hp (44-45 kW) |
|---|---|
| Number of Cylinders | 3-4 |
Hydraulics / Fluids 2 specs
| Standard Tires | SE 2x/2 or SE 4x |
|---|---|
| Front Tire Size | 250/75-12 |
