Forklift · Linde

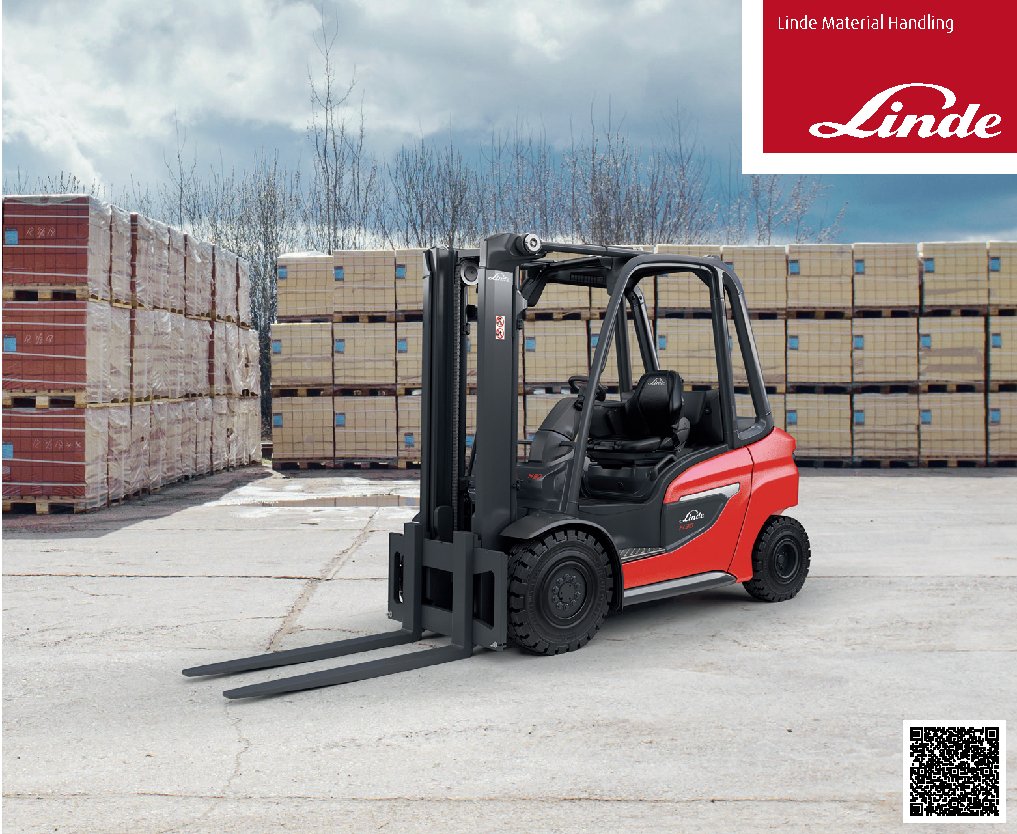

Linde H35T Specs
Quick-reference specifications for the Linde H35T forklift, from the manufacturer’s spec sheet and published specifications.
- Max Gradeability
- 27%
Performance 9 specs
| Fork carriage to ISO 2328, class / type A, B | 3A |
|---|---|
| Load Capacity | 7,000 lb (3,175 kg) |
| Load Center | 20 in (500 mm) |
| Travel Speed (laden/unladen) | 14 mph (22 km/h) |
| Hoisting Speed (with/without load) | 0.45/0.56 m/s |
| Lowering Speed (with load) | 0.56 m/s |
| Max Gradeability | 27% |
| Turning Radius | 97.5 in (2.478 m) |
| Tilt (forward/back) | 5.0/8.0 degrees |
Dimensions 7 specs
| Tyre size, rear | 6.50 – 10 |
|---|---|
| Length to Fork Face | 110 in (2,795 mm) |
| Width (standard tires) | 49.4 in (1,256 mm) |
| Height to Top of Overhead Guard | 87 in (2,210 mm) |
| Construction Height | 91.4 in (2,322 mm) |
| Wheelbase | 77.4 in (1,965 mm) |
| Max Lift Height | 253.1 in (6.427 m) |
Weight 1 spec
| Service Weight | 10,284 lb (4,665 kg) |
|---|
Power / Engine 4 specs
| Engine Type | G2.2 L3 |
|---|---|
| Engine Power | 53.6 hp (40 kW) |
| Displacement | 2.194 L |
| Number of Cylinders | 3 |
Hydraulics / Fluids 1 spec
| Tire Type (Front) | 250/75-12 Pneumatic |
|---|
