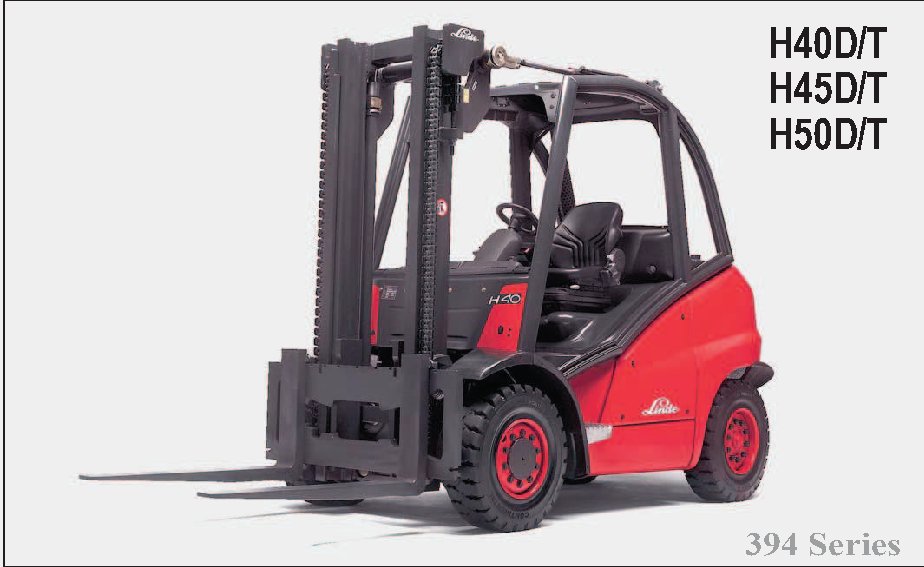

Linde H40D Specs
Quick-reference specifications for the Linde H40D forklift, taken from the manufacturer’s spec sheet.
- Weight
- 12,665 lb5,745 kg
- Gradeability With/Without Load
- 34.5/34.0 %
Performance 11 specs
| Load Capacity | 8,000 lb (4,000 kg) |
|---|---|
| Load Center | 24 in (500 mm) |
| Tires F/R | P/P |
| Steering | Power |
| Forward/Backward Tilt | 5.0/9.0 degrees |
| Turning Radius | 105.2 in (2,672 mm) |
| Gradeability With/Without Load | 34.5/34.0 % |
| Brake System | Dynamic/Hydraulic |
| Parking Brake | Foot/Hand |
| Noise Level (With Cab.) | 77.5 dBa |
| Speed Control | Infinitely Variable |
Dimensions 13 specs
| Fork Dimensions | 2x42x5 in (50×1,067×127 mm) |
|---|---|
| Total Length to Fork face | 117.5 in (2,984 mm) |
| Overall Width, (Front) | 56.9 in (1,446 mm) |
| Chassis Width, With Dual Tires | 78.1 in (1,984 mm) |
| Front Overhang | 19.0 in (483 mm) |
| Truck Height Including Overhead Guard | 93.8 in (2,383 mm) |
| Seat Height | 48.3 in (1,226 mm) |
| Aisle Width | 124.2 in (3,155 mm) |
| Tow Bar Height | 27.7 in (703 mm) |
| Tire Size, Front | 250-15/18PR IC40 |
| Tire Size, Rear | 250-15/18PR IC40 |
| Wheelbase | 78.7 in (1,998 mm) |
| Track Width Rear Tires | 44.2 in (1,123 mm) |
Weight 3 specs
| Weight | 12,665 lb (5,745 kg) |
|---|---|
| Axle Loading With Load, Front/Rear | 18,197/2,468 lb (8,608/1,137 kg) |
| Axle Loading Without Load, Front/Rear | 5,820/6,845 lb (2,640/3,105 kg) |
Power / Engine 4 specs
| Voltage (Electrical System) | 12 v |
|---|---|
| Engine Manufacturer/Type/Cyl. | VW/BJC 4 Cyl. |
| Engine RPM | 2,800 max. rpm |
| Transmission | Hydrostatic |
Hydraulics / Fluids 1 spec
| Hydraulic Operating Pressure For Attachments | 2,465 psi (170 bar) |
|---|
