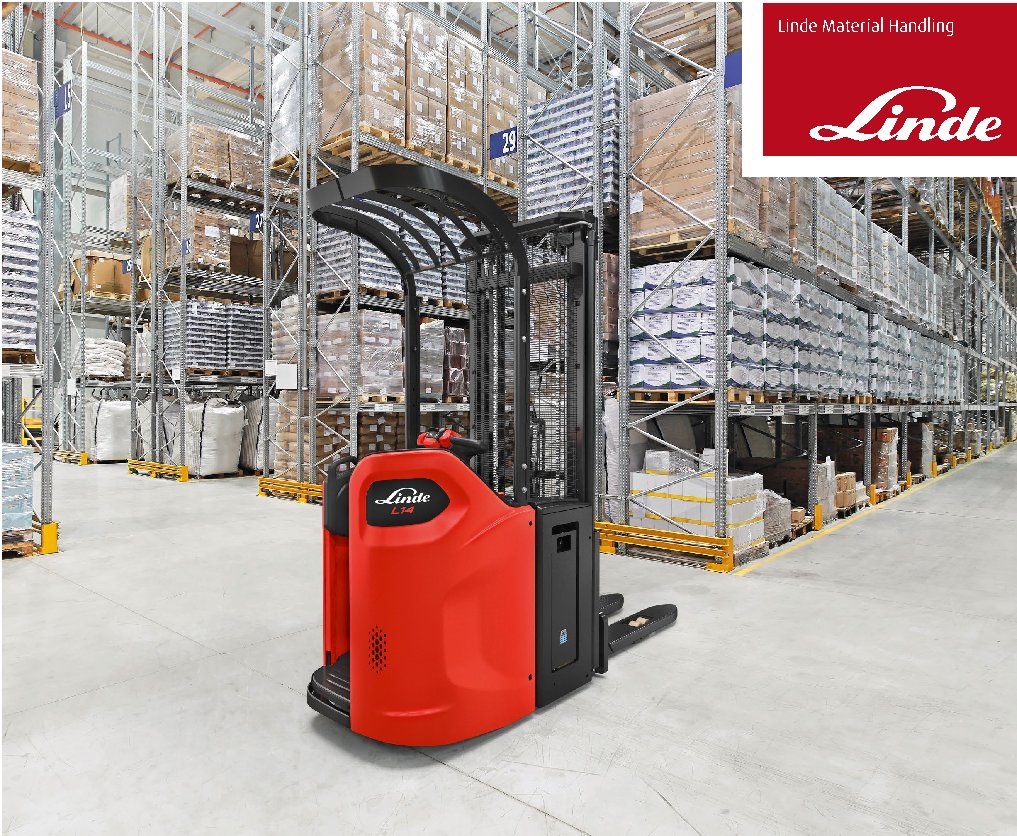

Linde L14SP Specs

Quick-reference specifications for the Linde L14SP forklift, taken from the manufacturer’s spec sheet.

Performance 8 specs

Tyres	Polyurethane
Height of reach legs h	80 mm
Turning radius Wa	2001/2071 mm
Travel speed, with/without load	9.5/9.5 km/h
Acceleration time, with/without load	6.0/5.1 s
Service brake	electric/mechanic
Type of drive unit	KWPC 05
Sound pressure level LpAZ (at the operator’s seat)	67 dB (A)

Load centre distance c	600 mm
Axle centre to fork face x	654/724 mm
Wheelbase y	1316/1386 mm
Tyre size, front	Ø 254 × 102
Auxiliary wheels (dimensions)	2x Ø 140 × 50
Track width, front b	491 mm
Track width, rear b	380/500 mm
Height of mast, lowered h	2265 mm
Free lift h	1745 mm
Lift h	5316 mm
Height of mast, extended h	5836 mm
Initial lift h	115 mm
Height of overhead guard (cabin) h	2224 mm
Height, lowered h	86 mm
Overall length l	2494 mm
Length to fork face l	1347 mm
Overall width b1/b	800 mm
Fork dimensions DIN ISO 2331 s/e/l	71 × 180 × 1150 mm
Width of fork carriage b	780 mm
Fork spread b	560/680 mm
Distance between wheel arms/loading surfaces b	196/316 mm
Ground clearance, below mast m	135/20 mm
Ground clearance, centre of wheelbase m	135/20 mm
Aisle width for pallets 1000 × 1200 crossways Ast	2894/2931 mm
Aisle width with pallet 800 × 1200 along forks Ast	2878/2893 mm

Service weight	1660 kg
Axle load with load, front/rear	1763/1297 kg
Axle load without load, front/rear	420/1240 kg

Drive motor rating at S2 60 min	3 kW
Lift motor rating at S3 15%	3.2 kW
Battery according to DIN 43531/35/36 A,B,C,no	43 535 B/3PzS
Battery weight	333 kg
