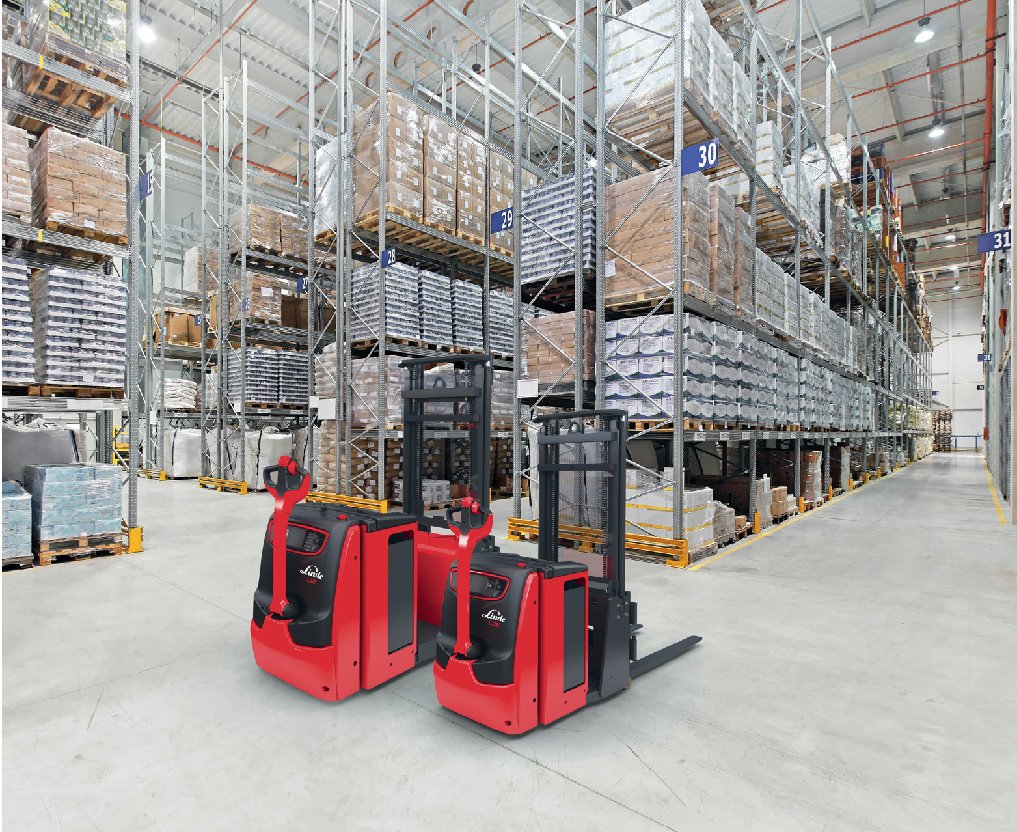

Linde L16AC Specs

Quick-reference specifications for the Linde L16AC forklift, taken from the manufacturer’s spec sheet.

Performance 10 specs

Load capacity/Load Q	1.6 t
Tyres	Polyurethane wet grip
Mast / fork carriage tilt, forward/backward a /b	1.0/6.0 °
Turning radius Wa	2036 mm
Travel speed, with/without load	5 /6 km/h
Lifting speed, with/without load	0.15 /0.3 m/ s
Lowering speed, with/without load	0.45 /0.35 m/ s
Service brake	Electro-magnetic
Type of drive unit	LAC
Sound pressure level LpAZ (at the driver’s seat)	61 dB (A)

Load centre distance c	500 mm
Axle centre to fork face x	107 mm
Wheelbase y	1626 mm
Tyre size, front	Ø 230 × 100
Tyre size, rear	Ø 85 × 105
Track width, rear b	500 mm
Height of mast, lowered h	1515 mm
Free lift h	150 mm
Lift h	1844 mm
Height of mast, extended h	2405 mm
Height, lowered h	67 mm
Overall length l	3172 mm
Length to fork face l	2022 mm
Overall width b1/b	790/890 mm
Fork dimensions DIN ISO 2331 s /e/ l	43 × 100 × 1150 mm
Fork carriage to ISO 2328, class / type A, B	2B
Width of fork carriage b	1000 mm
Fork spread b	225 /926 mm
Ground clearance, below mast m	30 mm
Ground clearance, centre of wheelbase m	3495 mm
Aisle width for pallets 1000 × 1200 crossways Ast	3603 mm
Aisle width with pallet 800 × 1200 along forks Ast	3603 mm

Service weight	2085 kg
Axle load with load, front / rear	698/ 2987 kg
Axle load without load, front / rear	1295 / 790 kg

Drive motor rating S2 60 min	2.3 kW
Lift motor rating at S3 15 %	3.2 kW
Battery according to DIN 43531/35/36 A, B, C, no	43 535 B/ 4 PzS
Battery weight (± 5 %)	365 kg
Power consumption according to VDI cycle	1.45 kWh/h
