Forklift · Linde

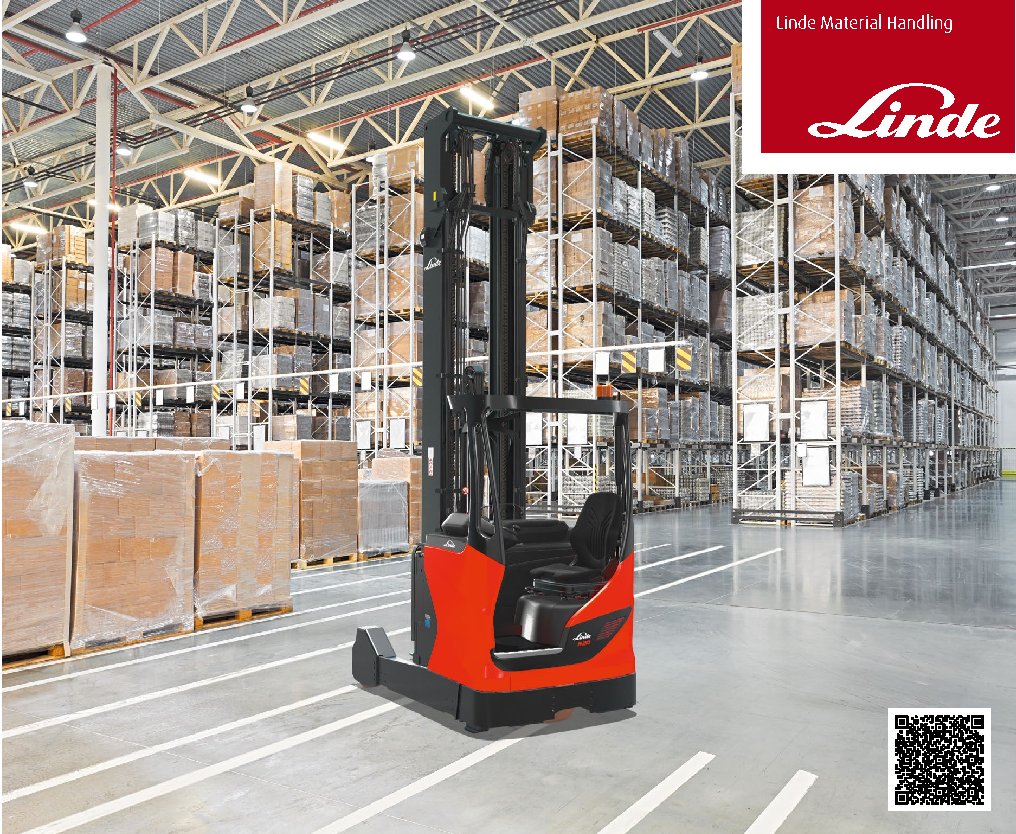

Linde R14 Specs
Quick-reference specifications for the Linde R14 forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height (3rd stage mast)
- 337.01 in8.56 m
- Gradeability – Full Load (3-minute)
- 10%
Performance 10 specs
| Fork carriage to ISO 2328 class/type A B | 2A |
|---|---|
| Load Capacity | 2,800 lb (1,400 kg) |
| Load Center | 23.62 in (600 mm) |
| Travel Speed (Forward/Reverse) – Full Load | 8.7 mph (13.8 km/h) |
| Lifting Speed – Full Load | 104.33 fpm (0.53 m/s) |
| Lowering Speed – Full Load | 104.33 fpm (0.53 m/s) |
| Reach/Retract Speed – Full Load | 39.37 fpm (0.2 m/s) |
| Gradeability – Full Load (3-minute) | 10% |
| Turning Radius (Outside) | 64.56 in (1.64 m) |
| Maximum Lift Height (3rd stage mast) | 337.01 in (8.56 m) |
Dimensions 12 specs
| Overall Length | 92.56 in (2.35 m) |
|---|---|
| Overall Width | 50 in (1.27 m) |
| Mast Lowered Height | 97.83 in (2.48 m) |
| Overhead Guard Height | 83.07 in (2.11 m) |
| Basic Right-Angle Stack | 105.87 in (2.69 m) |
| Wheelbase | 54.37 in (1.38 m) |
| Max Outreach | 23.03 in (0.58 m) |
| Length to Fork Face | 47.28 in (1.20 m) |
| Fork Spread (Outside) | 11.65 in (0.30 m) |
| ForkSize(TxWxL) | 1.57 x 3.15 x 45.28 in (0.04 x 0.08 x 1.15 m) |
| Carriage Width | 32.68 in (0.83 m) |
| Free-Lift Height | 64.41 in (1.64 m) |
Weight 2 specs
| Total Weight (Without Battery) | 6,757.16 lb (3.06 t) |
|---|---|
| Battery Weight | 1,653.47 lb (0.75 t) |
Power / Engine 1 spec
| Battery according to DIN 43531/35/36 A B C no | 43 531 C/[Li-ION] |
|---|
