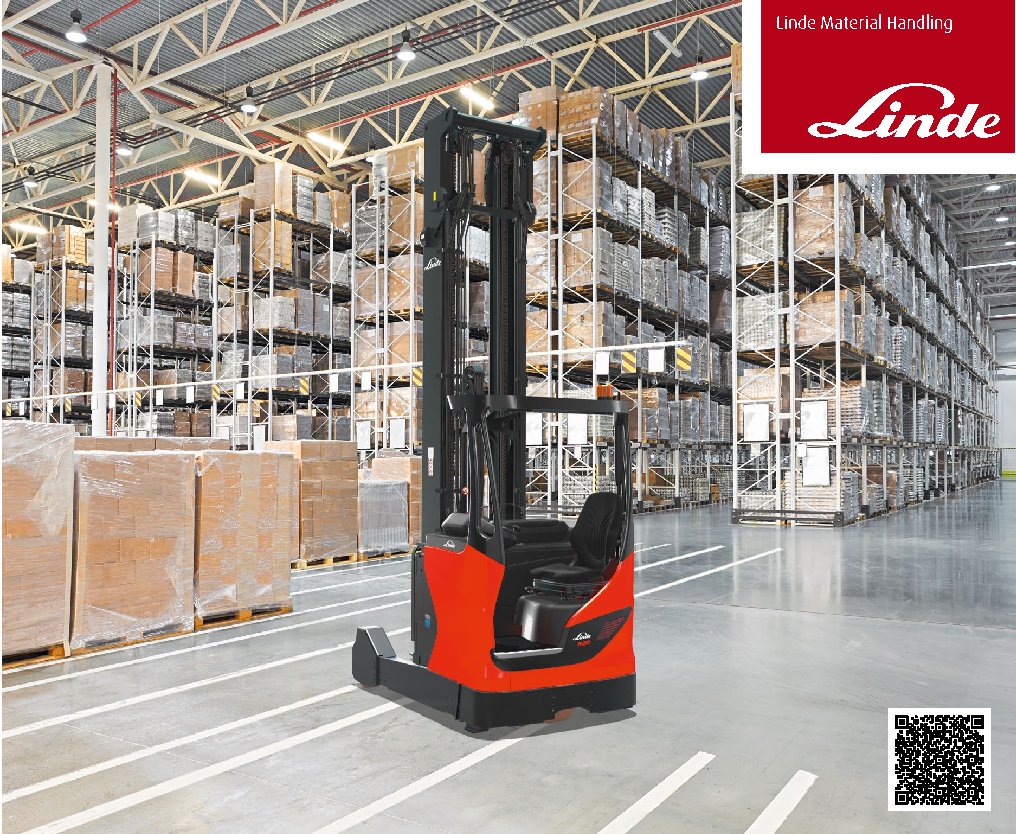

Linde R16HD Specs

Quick-reference specifications for the Linde R16HD forklift, from the manufacturer’s spec sheet and published specifications.

Download Spec Sheet (PDF)View PDF

Maximum Lift Height (3rd stage mast): 183.46 in (Min) – 337.01 in (Max)
Gradeability – Full Load: 10%

Performance 9 specs

Fork carriage to ISO 2328 class/type A B	2A
Load Capacity	3,200 lb (1,600 kg)
Travel Speed – Full Load (Forward/Reverse)	8.7 mph
Lifting Speed – Full Load	102.36 fpm (0.52 m/s)
Lowering Speed – Full Load	108.27 fpm (0.55 m/s)
Reach/Retract – Full Load	39.37 fpm
Gradeability – Full Load	10%
Turning Radius (outside)	67.32 in (1.71 m)
Basic Right-Angle Stack	110.12 in

Dimensions 12 specs

Overall Length	97.44 in
Overall Width	50 in (1,270 mm)
Mast Lowered Height	135.04 in (2,110 mm)
Mast Extended Height	354.37 in
Maximum Lift Height (3rd stage mast)	183.46 in (Min) – 337.01 in (Max)
Overhead Guard Height	83.07 in
Length to Fork Face	52.17 in
Wheelbase	57.2 in
Max Outreach	21.14 in
Fork Spread (Outside)	12.44 in
ForkSize(TxWxL)	1.77 x 3.94 x 45.28 in
Tilt Range (forward/backward)	2/4 degrees

Weight 3 specs

Total Weight (Without Battery)	8,719.27 lb (3,955 kg)
Battery Weight	2,070.14 lb (939 kg)
Weight Distribution – Full Load (Front/Rear)	1,796.77 lb / 10,449.9 lb

Power / Engine 3 specs

Battery according to DIN 43531/35/36 A B C no	43 531 C/[Li-ION]
Battery Voltage	48 V
Traction Motor	6.5 kW

Hydraulics / Fluids 1 spec

Load Center	600 mm / 500 mm
