Linde R17X Specs

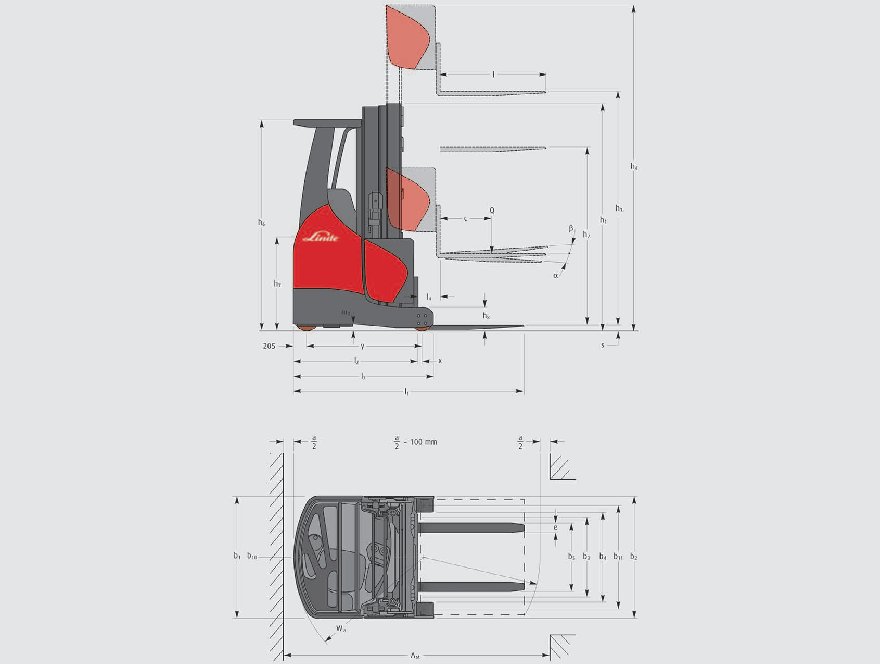

Quick-reference specifications for the Linde R17X forklift, taken from the manufacturer’s spec sheet.

Performance 11 specs

Load capacity/Load Q	1.7 t
Height of reach legs h	245 mm
Reach travel l	170 mm
Turning radius Wa	1551 mm
Travel speed, with/without load	14 / 14 km/h
Lifting speed, with/without load	0.4 / 0.7 m/s
Lowering speed, with/without load	0.55 / 0.45 m/s
Reach speed, with/without load	0.1 / 0.105 m/s
Acceleration time, with/without load	5.8 / 5.0 s
Service brake	Electric/hydraulic
Type of drive unit	Electronic/stepless

Load centre distance c	600 / 500 mm
Axle centre to fork face x	41 mm
Wheelbase y	1346 mm
Tyres	Polyurethane
Tyre size, front	Ø 343 x 135
Tyre size, rear	Ø 230 x 140
Track width, rear b	1072 mm
Height of mast, lowered h	3230 mm
Free lift h	2316 mm
Lift h	7855 mm
Height of mast, extended h	8814 mm
Height of overhead guard (cabin) h	2190 [2365] mm
Height of seat/stand on platform h	970 / 1130 mm
Overall length l	2660 mm
Length to fork face l	1510 mm
Overall width b1/b	1270 / 1270 mm
Fork dimensions DIN ISO 2331 s/e/l	45 x 100 x 1150 mm
Fork carriage to ISO 2328, class/type A, B	2A
Width of fork carriage b	710 mm
Fork spread b	316 / 710 mm
Distance between wheel arms/loading surfaces b	930 mm
Ground clearance, centre of wheelbase m	70 mm
Aisle width for pallets 1000 × 1200 crossways Ast	2882 mm
Aisle width with pallet 800 x 1200 along forks Ast	2977 mm
Length of chassis l	1667 mm

Service weight	4960 kg
Axle load without load, front/rear	1852 / 3108 kg
Axle load, fork outreached, with load, front/rear	896 / 5764 kg
Axle load, fork retracted, with load, front/rear	1375 / 5285 kg

Drive motor rating S2 60 min	6.5 kW
Lift motor rating at S3 15%	14 kW
Battery according to DIN 43531/35/36 A,B,C,no	43 531 / A
Battery weight (± 5%)	946 kg

Operating pressure for attachments	180 bar
Oil flow for attachments	25 l/min
