Forklift · Linde

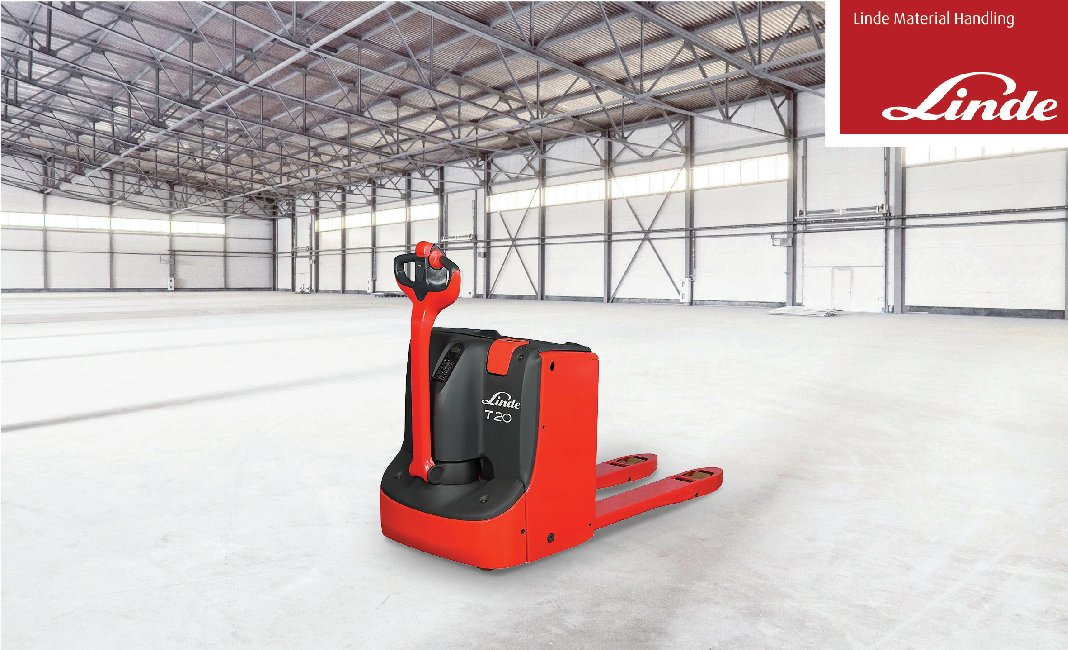

Linde T20 Specs
Quick-reference specifications for the Linde T20 forklift, taken from the manufacturer’s spec sheet.
- Rated capacity/rated load
- 4,400 lb2,000 kg
Performance 8 specs
| Drive system | Battery |
|---|---|
| Rated capacity/rated load | 4,400 lb (2,000 kg) |
| Turning radius | 62.4 / 65.2 in (1585 / 1655 mm) |
| Travel speed, loaded/unloaded | 3.5 / 3.5 mph (5.6 / 5.6 km/h) |
| Max. grade-ability, loaded/unloaded | 10 / 24 % |
| Acceleration time, with/without load | 7.6 / 6.4 s |
| Type of drive control | LAC |
| Noise level at operator’s ear | <70 dB (A) |
Dimensions 15 specs
| Load center distance | 24 in (600 mm) |
|---|---|
| Axle center to fork face | 34.5 / 37.8 in (876 / 960 mm) |
| Wheelbase | 56.6 / 59.2 in (1437 / 1503 mm) |
| Tire size, drive wheels | 9.1 x 3.5 in (230 x 90 mm) |
| Wheels, number of drive wheels (x = driven) | 1x + 2 |
| Track width, caster wheels | 19.0 in (482 mm) |
| Lift height | 4.9 in (125 mm) |
| Fork height, lowered | 3.2 in (83 mm) |
| Overall length | 69.9 in (1775 mm) |
| Length to face of forks | 22.6 in (575 mm) |
| Overall width | 28.3 in (720 mm) |
| Fork dimensions | 6.5 x 2.2 x 47.3 in (165 x 55 x 1200 mm) |
| Fork spread, min/max | 22.0 / 26.8 in (560 / 680 mm) |
| Ground clearance, center of wheelbase | 1.3 / 6.3 in (33 / 158 mm) |
| Aisle width with 48″ pallet | 83.9 in (2129 mm) |
Weight 3 specs
| Service weight | 972 lb (441 kg) |
|---|---|
| Axle load with load, front/rear | 1782 / 3562 lb (809 / 1616 kg) |
| Axle loading, unloaded front/rear | 754 / 218 lb (342 / 99 kg) |
Power / Engine 5 specs
| Drive motor, 60 minute rating | 1.6 hp (1.20 kW) |
|---|---|
| Lift motor rating at 15% | 1.6 hp (1.20 kW) |
| Battery compartment size, l x w x h | 9.2 x 25.7 x 24.8 in (235 x 654 x 630 mm) |
| Battery voltage/nominal capacity | 24 V / 100 kAh |
| Battery weight | 400 lb (181 kg) |
