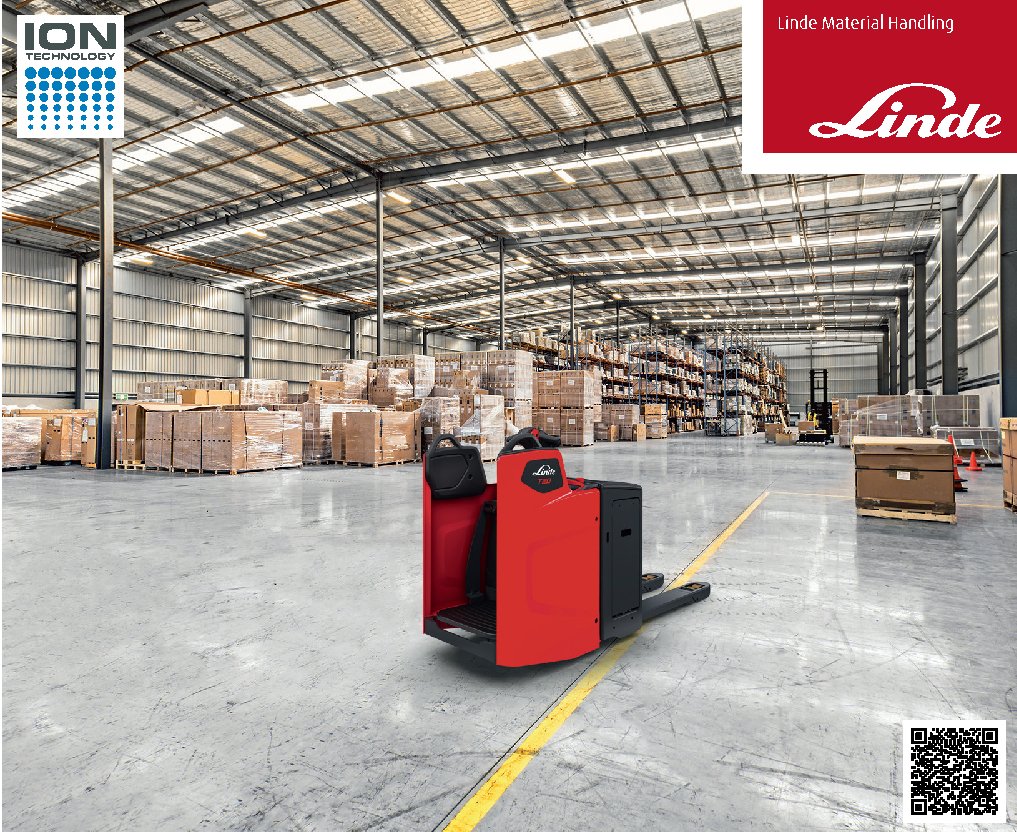

Linde T20FP Specs
Quick-reference specifications for the Linde T20FP forklift, taken from the manufacturer’s spec sheet.
Performance 8 specs
| Load capacity / Load Q | 2.0 t |
|---|---|
| Turning radius fork up/down Wa | 2095 / 2165 mm |
| Travel speed, with/without load | 10 / 12 km/h |
| Initial lifting speed, with/without load | 0.036 / 0.046 m/s |
| Initial lowering speed, with/without load | 0.090 / 0.089 m/s |
| Acceleration time, with/without load | 5.9 / 5.1 s |
| Service brake | Electro magnetic |
| Sound level at driver’s ear | 62 dB (A) |
Dimensions 14 specs
| Load centre distance c | 600 mm |
|---|---|
| Axle centre to fork face x | 975 mm |
| Wheelbase y | 1478 mm |
| Track width, front b | 502 mm |
| Track width, rear b | 380 mm |
| Lift h | 125 mm |
| Height, lowered h | 86 mm |
| Overall length l | 2320 mm |
| Length to fork face l | 1170 mm |
| Overall width b | 720 mm |
| Dimension of fork arms s / e / l | 55 / 165 / 1150 mm |
| Width over forks b | 520 / 540 / 560 / 680 mm |
| Ground clearance, centre of wheelbase m | 35 mm |
| Aisle width with pallet 800 × 1200 along forks Ast | 2790 mm |
Weight 3 specs
| Service weight | 870 kg |
|---|---|
| Axle load with load, front / rear | 1175 / 1695 kg |
| Axle load without load, front / rear | 720 / 150 kg |
Power / Engine 7 specs
| Drive motor rating S2 60 min | 3 kW |
|---|---|
| Lift motor rating at S3 10 % | 1.2 kW |
| Battery according to DIN 43 535 | 3 PzS SL |
| Battery and battery housing weight (± 10 %) | 290 kg |
| Power consumption according to VDI cycle | 0.43 kWh/h |
| Power consumption at turnover output | 1.74 kWh/h |
| Type of drive unit | LAC |
