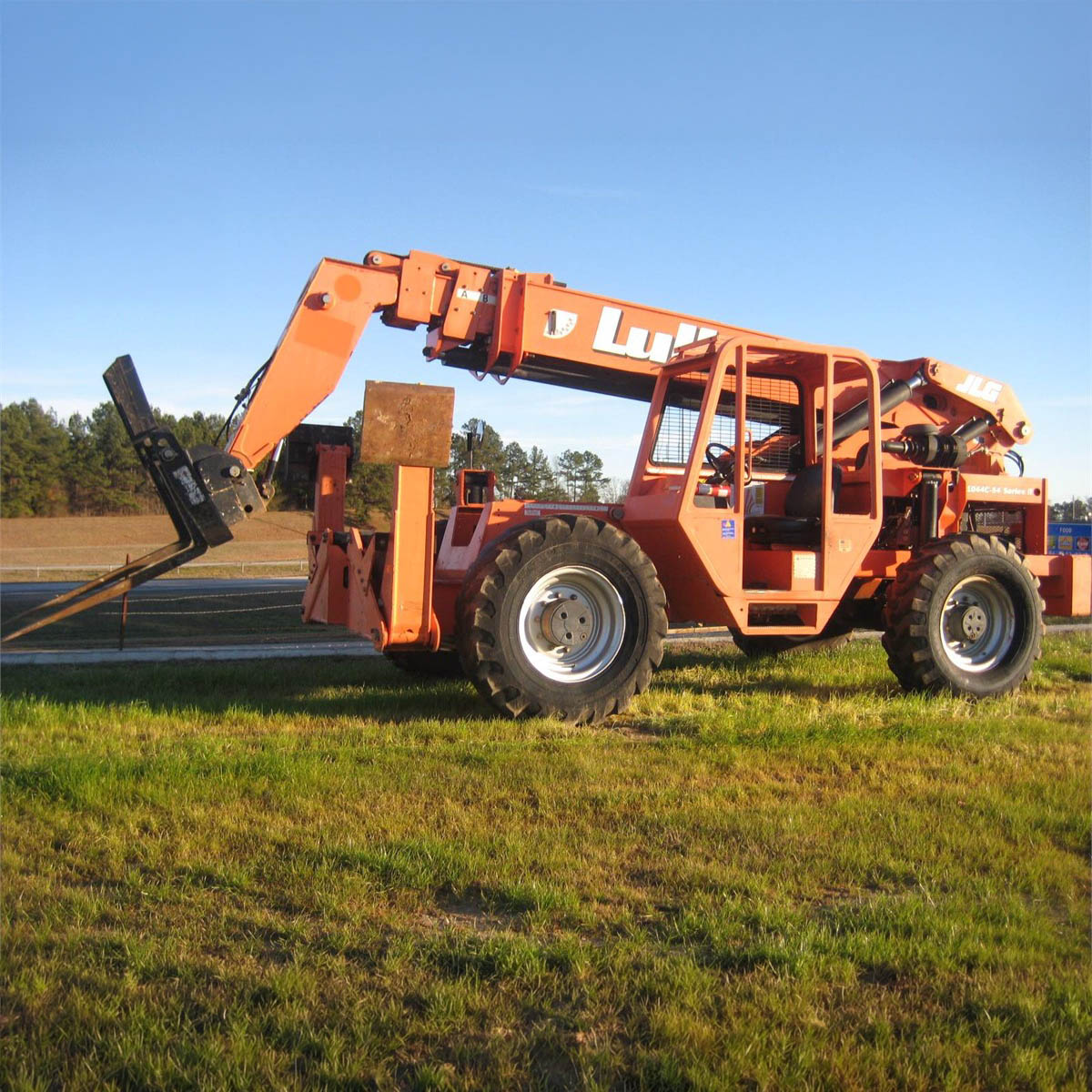

LULL 1044C-54 Series II Spec Sheet
Quick-reference specifications for the LULL 1044C-54 Series II telehandler. Includes key performance, dimensions, weights, attachments, and capacities listed in the spec sheet.
BHESPECS note: Rated lift capacities assume the machine is level on a firm surface with properly inflated, undamaged tires. Use only approved attachments and verify load charts before lifting.
Performance
| Rated Capacity | 10,000 lb (4,536 kg) |
|---|---|
| Maximum Lift Height | 54 ft (16.5 m) |
| Forward Reach | 45 ft (13.7 m) |
| Frame Leveling | 10 degrees |
| Lift Speed (boom retracted, no load) | Up: 15.6 sec / Down: 14.6 sec |
| Boom Speed (no load) | Extend: 15.2 sec / Retract: 11.3 sec |
| Travel Speed (Forward) | 22 mph (35 kmph) max |
| Drawbar Pull (loaded) | 21,700 lb (9,843 kg) |
| Horizontal Load Placement | 80 in. (2.0 m) |
Dimensions
| Length (less forks) | 246 in. (6.24 m) |
|---|---|
| Width | 101 in. (2.57 m) |
| Height | 97 in. (2.46 m) |
| Wheelbase | 124 in. (3.14 m) |
| Ground Clearance | 16 in. (406 mm) |
| Outside Turning Radius | 170 in. (4.32 m) |
| Max Reach to 24 in. (609 mm) Load Center | 45 ft (13.7 m) |
Weights
| Operating Weight | 32,697 lb (14,931 kg) (with 50 in. carriage and forks) |
|---|
Powertrain & Systems
| Engine (Make/Model) | John Deere 4045TF |
|---|---|
| Fuel | No. 2 Diesel |
| Cycles / Cylinders | 4-cycle / 4-cylinder |
| Displacement | 276 cu in (4.5 L) |
| Rated Speed | 2,500 rpm |
| Max Gross Power | 115 hp (85 kW) |
| Fuel Tank | 36 gal (136 L) |
| Electrical | 12V; 95 amp alternator; 925 CCA battery @ 0°F |
| Transmission | Modulated powershift; 4-speed forward / 3-speed reverse |
| Axles / Drive | Full-time planetary 4WD; oscillating rear axle |
| Service Brakes | Hydraulically actuated inboard wet disc brakes |
| Parking Brakes | Spring-applied hydraulic release brake with transmission declutch |
| Steering | 4-wheel circle, 4-wheel crab, 2-wheel front |
| Standard Tires | 400/75-28 |
| Cab | ROPS/FOPS; suspension seat; steering wheel horn; rear view mirrors |
Hydraulics & Capacities
System Capacity: 33.5 gal (127 L)
Auxiliary Hydraulics: For cylinder-equipped attachments
Capacity shown is the listed hydraulic system capacity from the spec sheet. For fluid type/grade, reference your operator/service manual for the exact serial range.

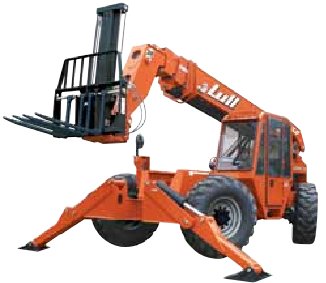

| Front Outriggers | Axle-mounted high clearance outriggers allow frame leveling without changing stance |
|---|---|
| Instruments | Hydraulic oil temp, fuel level, tachometer, hourmeter + warning indicators |
Safety reminder: Do not exceed rated lift capacity loads. Use only approved attachments with proper load capacity charts displayed in the cab.
