10K Telehandler · Lull

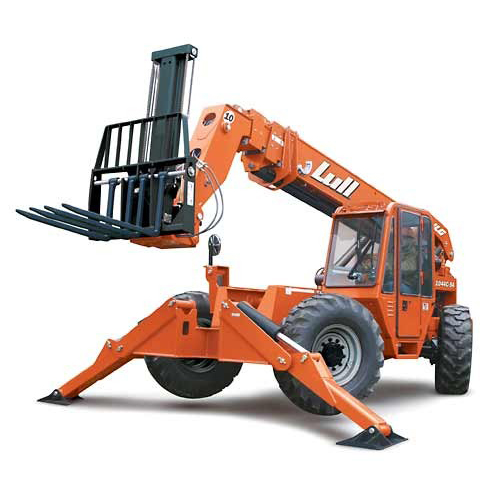

Lull 1044C-54 Specs
Quick-reference specifications for the Lull 1044C-54 telehandler, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 10,000 lb4,536 kg
- Maximum Lift Height
- 54 ft16.5 m
- Operating Weight Without Carriage and Forks
- 31,100 lb14,107 kg
Performance 6 specs
| Rated Capacity | 10,000 lb (4,536 kg) |
|---|---|
| Travel Speed Forward | 20 mph (32 kmph) max. |
| Drawbar Pull (loaded) | 22,800 lb (10,342 kg) |
| Forward Reach | 45 ft (13.7 m) |
| Horizontal Load Placement | 80 in (2.0 m) |
| Outside Turning Radius | 164 in (4.16 m) |
Dimensions 6 specs
| Maximum Lift Height | 54 ft (16.5 m) |
|---|---|
| Length (less forks) | 246 in (6.24 m) |
| Width | 100 in (2.54 m) |
| Height | 95 in (2.41 m) |
| Wheelbase | 124 in (3.14 m) |
| Ground Clearance | 16 in (406 mm) |
Weight 1 spec
| Operating Weight Without Carriage and Forks | 31,100 lb (14,107 kg) |
|---|
Power / Engine 4 specs
| No. of Cylinders | 4 |
|---|---|
| Displacement | 239 cu in (3.9 L) |
| Torque Rating | 278 lb ft (377 Nm) |
| Electrical System – Voltage | 12 V |
Hydraulics / Fluids 2 specs
| Fuel Tank | 40 gal (151.4 L) |
|---|---|
| Hydraulic Fork Position Carriage | 50 in (1.3 m) |
