Telehandler · Lull

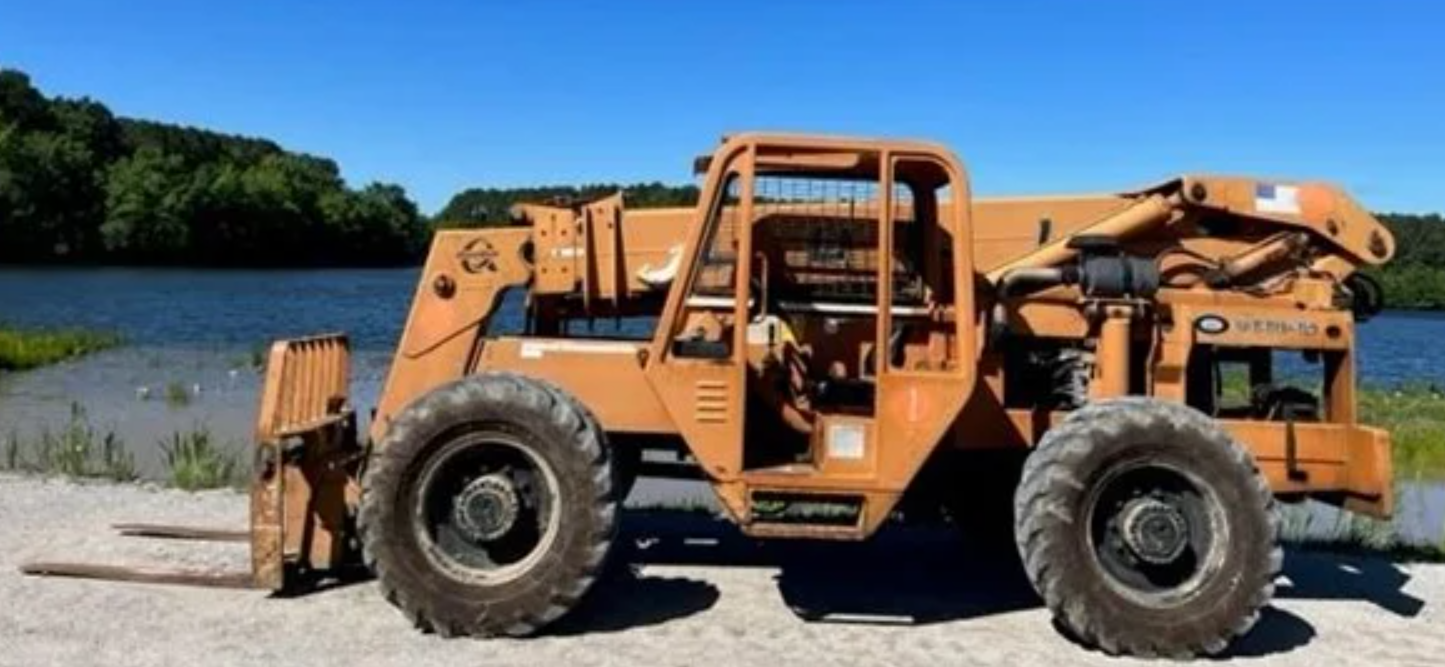

Lull 644B-42 Specs
Quick-reference specifications for the Lull 644B-42 telehandler, compiled from published specifications.
- Max Lift Capacity
- 6,000 lb2,721.56 kg
- Operating Weight
- 50,045 lb22,700 kg
Performance 4 specs
| Max Lift Capacity | 6,000 lb (2,721.56 kg) |
|---|---|
| Max Lift Height | 42 ft (12.80 m) |
| Max Forward Reach | 32 ft (9.75 m) |
| Max Load at Max Reach | 9.8-10 lb (4.45 kg) |
Dimensions 6 specs
| Length to Fork Face | 23.7 ft (7.22 m) |
|---|---|
| Overall Width | 8 ft (2.44 m) |
| Overall Height | 8 ft (2.44 m) |
| Wheelbase | 10.4 ft (3.17 m) |
| Ground Clearance | 16.8 in (42.67 cm) |
| Turning Radius Outside Tires | 13.8 ft (4.21 m) |
Weight 1 spec
| Operating Weight | 50,045 lb (22,700 kg) |
|---|
Power / Engine 5 specs
| Engine Model | 4039D |
|---|---|
| Power Measured @ | 2500 rpm |
| Fuel Capacity | 40 gal (151.40 l) |
| Operating Voltage | 12 volts |
| Alternator Supplied Amperage | 65 amps |
Hydraulics / Fluids 3 specs
| Hydraulic System Fluid Capacity | 44 gal (166.54 l) |
|---|---|
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
