Telehandler · Lull

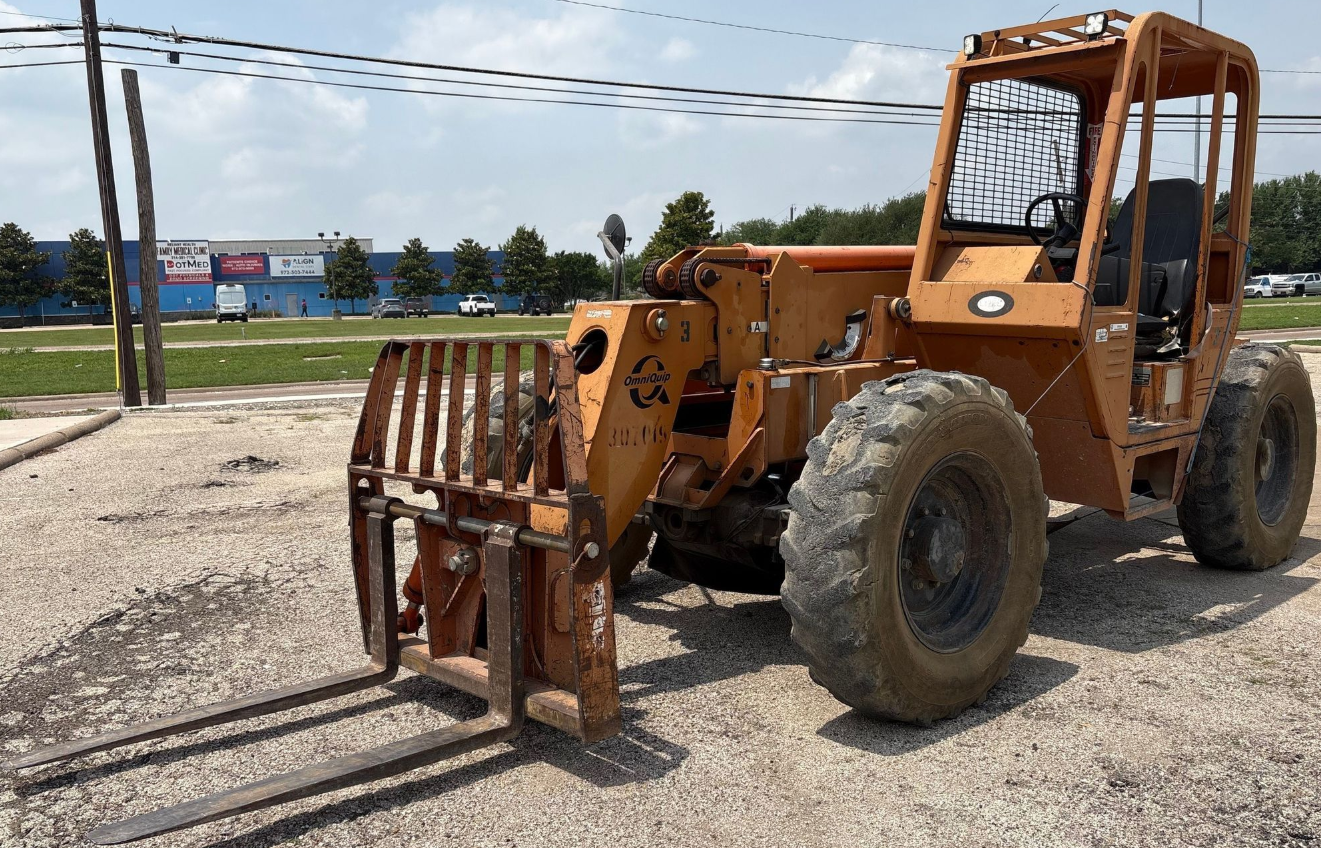

Lull 644D-34 Specs
Quick-reference specifications for the Lull 644D-34 telehandler, taken from the manufacturer’s spec sheet.
- Capacity
- 6,000 lb2729 kg
- Weight
- 18,400 lb8365 kg
Performance 6 specs
| Capacity | 6,000 lb (2729 kg) |
|---|---|
| Capacity @ Full Height | 6,000 lb (2729 kg) |
| Max. Horizontal Forward Reach | 29 ft (8.8 m) |
| Reach Below Grade | 16 in (406 mm) |
| Max. Travel Speed | 20 mph (32 km/h) |
| Frame Leveling | 10 degree (L/R) |
Dimensions 7 specs
| Lift Height | 34 ft (10.3 m) |
|---|---|
| Landing Height | 34 ft (10.3 m) |
| Outside Turn Radius | 11 ft 7 in (3.5 m) |
| Height | 101.5 in (2.6 m) |
| Length | 205 in (5.16 m) |
| Width | 96 in (2.44 m) |
| Ground Clearance | 17 in (432 mm) |
Weight 1 spec
| Weight | 18,400 lb (8365 kg) |
|---|
Power / Engine 2 specs
| Axles | Outboard Planetary |
|---|---|
| Brakes | Inboard Wet Disc |
