9K Telehandler · Lull

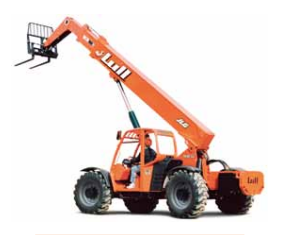

Lull 944E-42 Specs
Quick-reference specifications for the Lull 944E-42 telehandler, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 9,000 lb4,082 kg
- Maximum Lift Height
- 42 ft12.8 m
Performance 7 specs
| Rated Capacity | 9,000 lb (4,082 kg) |
|---|---|
| Frame Leveling | 12 degrees |
| Boom Speed (no load) – Extend | 13 sec |
| Boom Speed (no load) – Retract | 13 sec |
| Travel Speed Forward | 20 mph (32 kmph) max. |
| Horizontal Load Placement Distance | 80 in (2.0 m) |
| Outside Turning Radius | 6,147 in (3.73175 m) |
Dimensions 3 specs
| Maximum Lift Height | 42 ft (12.8 m) |
|---|---|
| Width | 99.360 in (2.52F m) |
| Wheelbase | 131 in (3.33 m) |
Power / Engine 8 specs
| Dual Positioning Fork Carriage | 50 in (1.3 m) |
|---|---|
| Engine – Make and Model | Cummins QSB4.5T Turbo |
| No. of Cylinders | 4 |
| Displacement | 276 cu in (4.5 L) |
| Torque Rating | 305 lb ft (414 Nm) |
| Electrical System – Voltage | 12 V |
| Electrical System – Alternator | 65 amp |
| Electrical System – Battery | Two batteries, each with 850 |
Hydraulics / Fluids 1 spec
| Fuel Tank | 46 gal (174 L) |
|---|
