Telehandler · Manitou

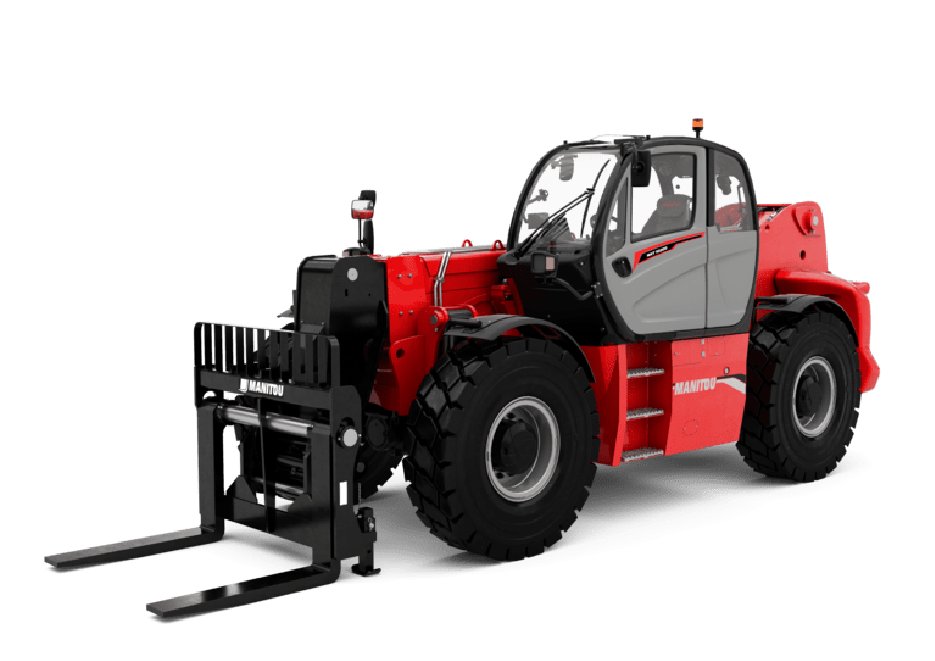

Manitou MHT10200 Specs
Quick-reference specifications for the Manitou MHT10200 telehandler, taken from the manufacturer’s spec sheet.
- Gradeability (laden / unladen)
- 30.50 % / 58.90 %
Performance 15 specs
| Max. capacity | 44090 lb |
|---|---|
| Load centre of gravity | 24 in |
| Max. outreach | 17 ft 9 in |
| Tilt-down angle | 103 ° |
| Tilt-up angle | 14 ° |
| External turning radius (over tyres) | 18 ft 4 in |
| Standard tyres | 16.00 R25 |
| Drawbar pull (Laden) | 18140 daN |
| Max. travel speed | 16 mi/h |
| Parking brake | Automatic negative parking brake |
| Gradeability (laden / unladen) | 30.50 % / 58.90 % |
| Noise at driving position (LpA) | 75 dB |
| Noise to environment (LwA) | 109 dB |
| Vibration on hands/arms | < 2.50 m/s² |
| Safety cab homologation | Cabin ROPS – FOPS Level |
Dimensions 10 specs
| Max. lifting height | 31 ft 10 in |
|---|---|
| Overall length | 25 ft 11 in |
| Ground clearance | 1 ft 4 in |
| Wheelbase | 12 ft 4 in |
| Length to face of forks | 22 ft |
| Overall width | 8 ft 6 in |
| Overall height | 9 ft 9 in |
| Overall cab width | 3 ft 1 in |
| Forks length / width / section | 47 in x 8 in / 3 in |
| Frame levelling corrector | 10 ° |
Weight 1 spec
| Unladen weight (with forks) | 59194 lb |
|---|
Power / Engine 8 specs
| Engine brand | Yanmar |
|---|---|
| Engine norm | Stage V / Tier |
| Engine model | 4TN107FTT-6SMU2 |
| I.C. Engine power rating / Power (kW) | 211 Hp (155 kW) |
| Engine cooling system | Water |
| Number of batteries | 2 |
| Transmission type | Hydrostatic |
| Engine oil | 3 US gal |
Hydraulics / Fluids 4 specs
| Hydraulic pump type | Variable displacement pump |
|---|---|
| Hydraulic flow – Pressure | 73 US gpm – 5076 PSI |
| Hydraulic oil | 77 US gal |
| Fuel tank | 83 US gal |
