Telehandler · Manitou

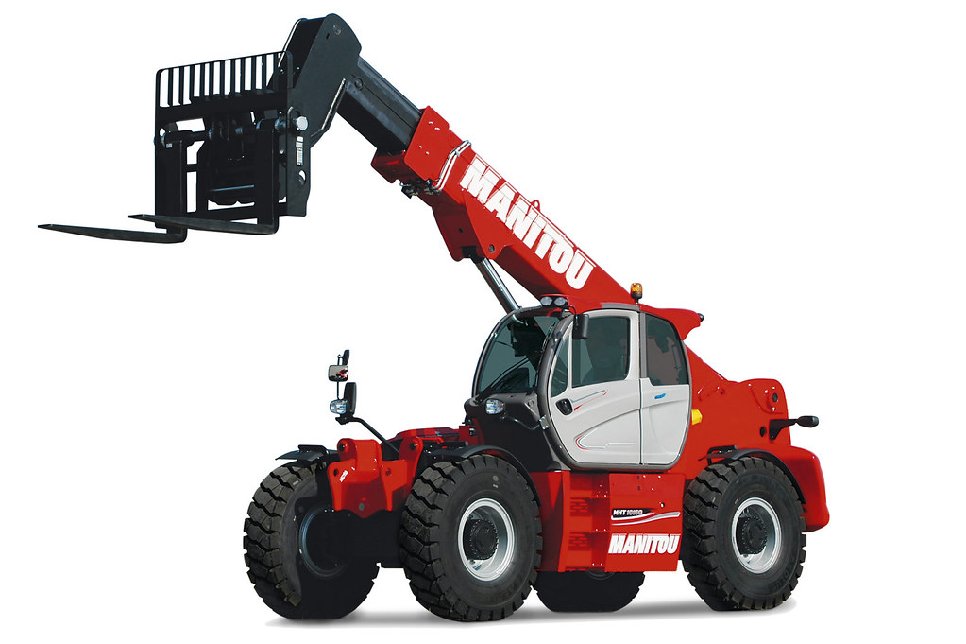

Manitou MHT10180 Specs
Quick-reference specifications for the Manitou MHT10180 telehandler, taken from the manufacturer’s spec sheet.
Performance 9 specs
| Max. capacity | 18000 kg |
|---|---|
| Max. reach | 5.56 m |
| Lifting | 33 s |
| Lowering | 25 s |
| Laden drawbar pull | 15970 daN |
| Noise at driving position (LpA) | 80 dB (A) |
| Noise to environment (LwA) | 107 dB (A) |
| Vibration on hands/arms | <2.5 m/s² |
| Safety – Cab | Cab ROPS – FOPS Level |
Dimensions 3 specs
| Max. lift height | 9.63 m |
|---|---|
| Y – Wheelbase | 3.75 m |
| Standard forks | 1200 x 200 x 80 |
Weight 1 spec
| Unladen weight (with forks) | 24000 kg |
|---|
Power / Engine 6 specs
| Power | 176 hp (129 kW) |
|---|---|
| Transmission – Type | Hydrostatic |
| Parking brake | Automatic negative parking brake |
| Service brake | Hydraulic |
| Tank capacities – Engine oil | 21 l |
| Tank capacities – Fuel | 315 l |
Hydraulics / Fluids 4 specs
| Type of pump | Variable Flow |
|---|---|
| Hydraulic flow rate – Pressure | 205 l/min – 350 bar |
| Tank capacities – Hydraulic oil | 290 l |
| Tank capacities – AdBlue® Diesel Exhaust Fluid (DEF) | 63 l |
