Telehandler · Manitou

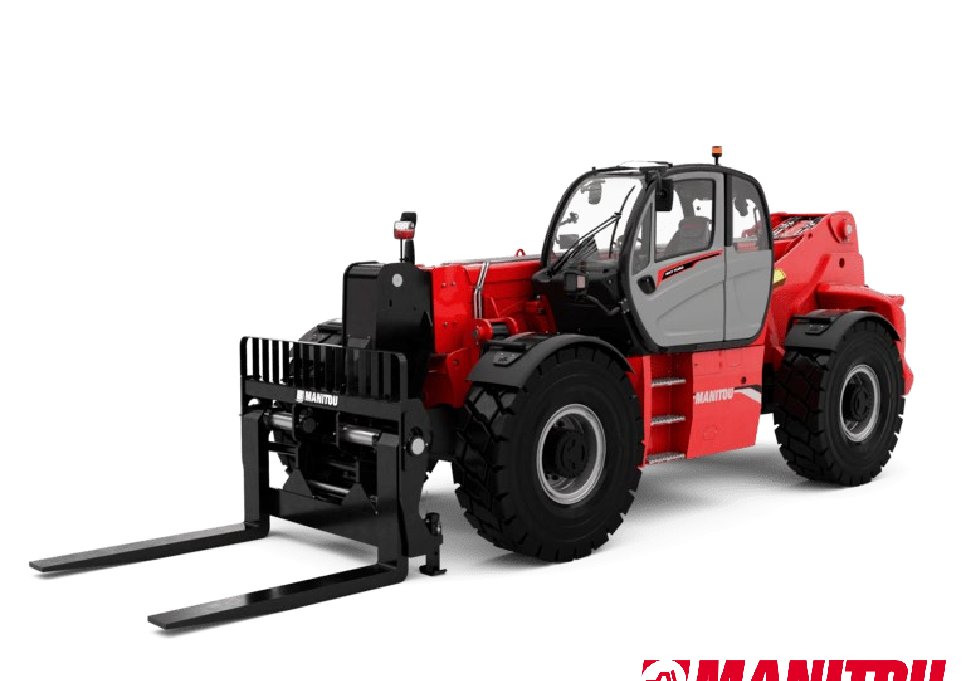

Manitou MHT11250 Specs
Quick-reference specifications for the Manitou MHT11250 telehandler, taken from the manufacturer’s spec sheet.
Performance 7 specs
| Max. capacity | 24999 kg |
|---|---|
| Load centre of gravity c | 900 mm |
| Max. outreach | 6 m |
| Max. travel speed | 25 km/h |
| External turning radius (over tyres) Wa | 5.50 m |
| Tilt-down angle a | 105 ° |
| Tilt-up angle a | 12 ° |
Dimensions 10 specs
| Max. lifting height | 10.60 m |
|---|---|
| Overall length l | 8.92 m |
| Length to face of forks l | 7.12 m |
| Overall width b | 2.84 m |
| Overall height h | 3.03 m |
| Overall cab width b | 0.95 m |
| Ground clearance m | 0.47 m |
| Wheelbase y | 4.10 m |
| Frame levelling corrector a | 10 ° |
| Forks length / width / section l / e / s | 1800 mm x 220 mm / 100 mm |
Weight 1 spec
| Unladen weight (with forks) | 31610 kg |
|---|
Power / Engine 11 specs
| Engine brand | Yanmar |
|---|---|
| Engine norm | Stage V / Tier |
| Engine model | 4TN107FTT-6SMU2 |
| I.C. Engine power rating / Power (kW) | 211 Hp (155 kW) |
| Max. torque / Engine rotation | 805 Nm@1500 rpm |
| Engine cooling system | Water |
| Transmission type | Hydrostatic |
| Parking brake | Automatic negative parking brake |
| Number of batteries | 2 |
| Standard tyres | 18.00 R25 |
| Engine oil | 13 l |
Hydraulics / Fluids 4 specs
| Hydraulic pump type | Variable displacement pump |
|---|---|
| Hydraulic flow – Pressure | 275 l/min – 350 bar |
| Hydraulic oil | 290 l |
| Fuel tank | 315 l |
