Telehandler · Manitou

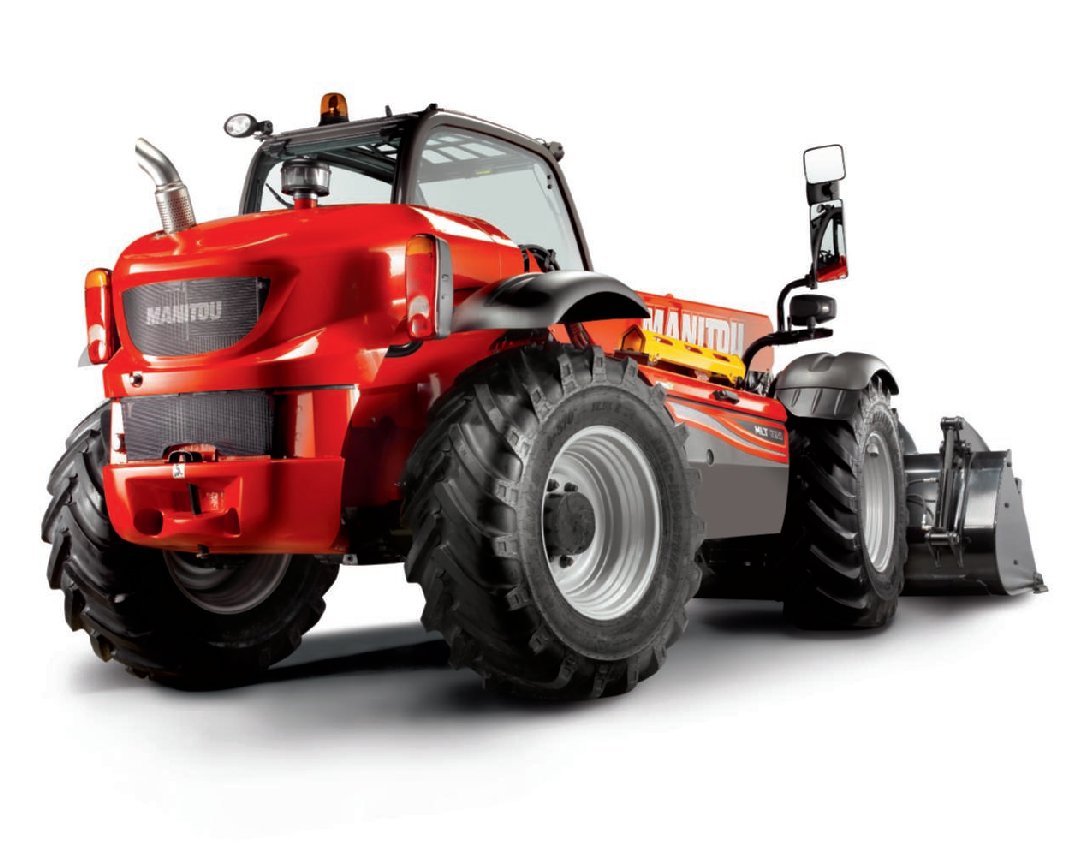

Manitou MLT629 Specs
Quick-reference specifications for the Manitou MLT629 telehandler, taken from the manufacturer’s spec sheet.
Performance 11 specs
| Max. capacity | 2900 kg |
|---|---|
| Max. outreach | 3.2 m |
| Reach at max. height | 0.9 m |
| Unladen time – Lifting | 7.71 secs |
| Unladen time – Lowering | 5.66 secs |
| Tyres | 400/70 R 20 |
| Service brake | hydraulical oil-immersed multi-disc |
| Parking brake | mechanical oil-immersed multi-disc |
| Laden drawbar pull | 7100 daN |
| Max. travel speed | 28 kph |
| Turning radius (over tyres) | 3.58 m |
Dimensions 8 specs
| Max. lifting height | 5.5 m |
|---|---|
| Ground clearance | 0.40 m |
| Overall length to carriage | 4.83 m |
| Wheelbase | 2.52 m |
| Overall width of cab | 0.86 m |
| Overall width | 2.00 m |
| Overall height | 2.21 m / 2.06 m |
| Standard forks (length x width x thickness) | 1200 x 125 x 45 mm |
Weight 1 spec
| Unladen weight (with forks) | 6025 kg |
|---|
Power / Engine 3 specs
| Engine | PERKINS – STAGE 3B |
|---|---|
| Max. torque | 420 Nm – 1400 rpm |
| Fuel | 104 l |
Hydraulics / Fluids 1 spec
| Hydraulic oil | 98 l |
|---|
