Telehandler · Manitou

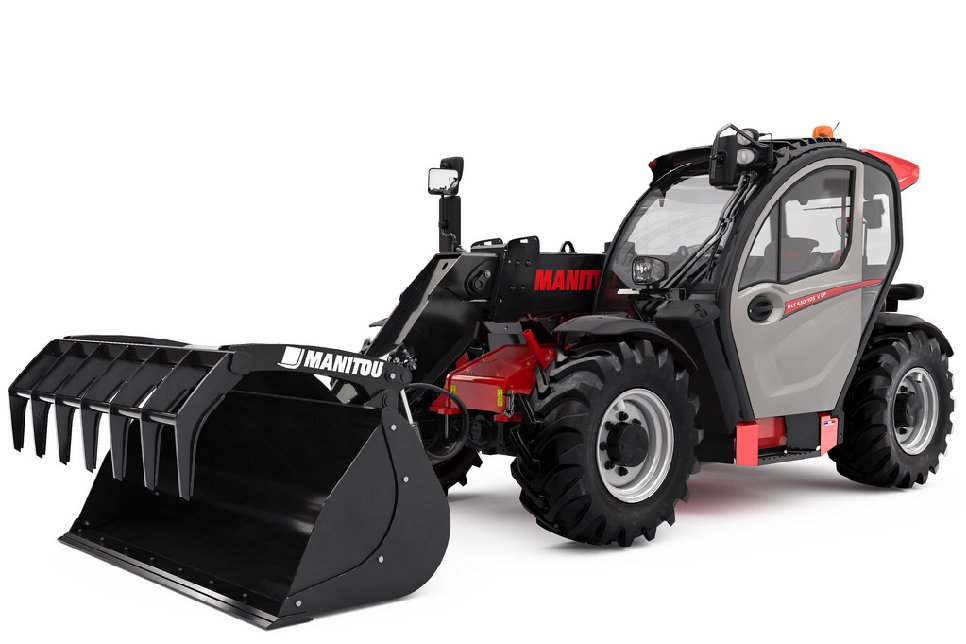

Manitou MLT630-105V Specs
Quick-reference specifications for the Manitou MLT630-105V telehandler, from the manufacturer’s spec sheet and published specifications.
Performance 8 specs
| Max. lifting capacity | 6614 lb (3000 kg) |
|---|---|
| Max. lifting height | 19 ft 8 in (6 m) |
| Max. outreach | 11 ft 3 in (3.43 m) |
| Reach at max height | 2 ft 11 in (0.90 m) |
| Lifting time | 6.5 s |
| Lowering time | 5 s |
| Max travel speed | 24 mph (38 km/h) |
| Breakout force with bucket | 5840 daN |
Dimensions 9 specs
| Overall length to carriage (with hitch) | 15 ft 8 in (4.78 m) |
|---|---|
| Wheelbase | 8 ft 9 in (2.69 m) |
| Overall width | 6 ft 9 in (2.06 m) |
| Overall height | 7 ft (2.14 m) |
| Overall cab width | 3 ft 1 in (0.95 m) |
| Ground clearance | 11 in (0.28 m) |
| External turning radius (over tyres) | 11 ft 11 in (3.65 m) |
| Tilt-down angle | 133° |
| Tilt-up angle | 13° |
Weight 1 spec
| Unladen weight (with forks) | 14,903 lb (6760 kg) |
|---|
Power / Engine 4 specs
| Engine model | TCD 3.6 l |
|---|---|
| Engine norm | Stage IV / Tier 4 Final |
| Number of cylinders | 4 |
| Power rating | 101 hp (74.4 kW) |
Hydraulics / Fluids 1 spec
| Standard tyres | Alliance A580 400/70 R20 149A8 |
|---|
