Telehandler · Manitou

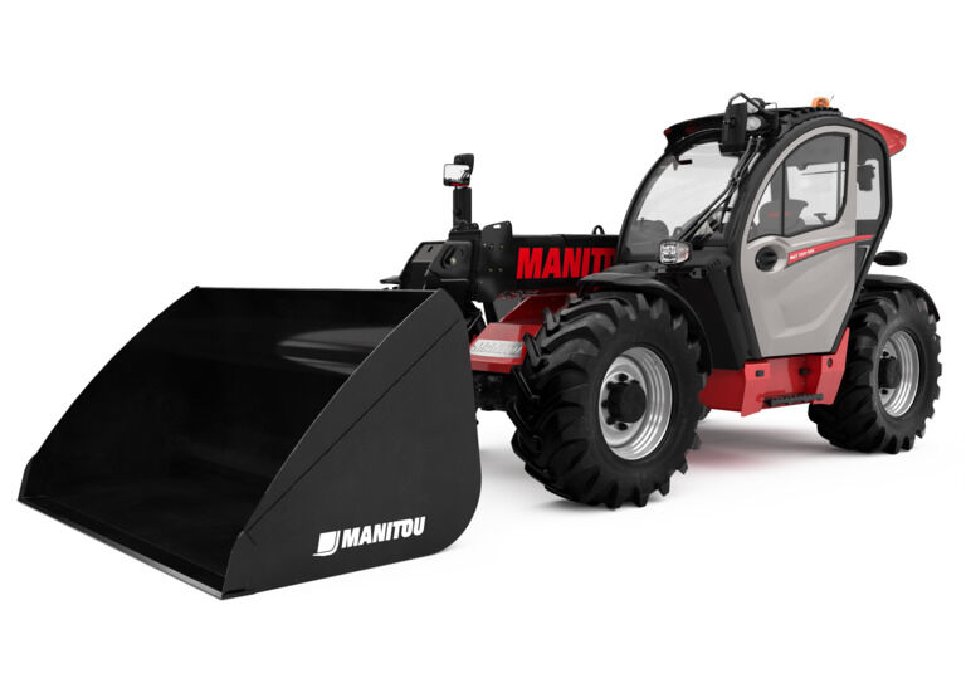

Manitou MLT733-115 Specs
Quick-reference specifications for the Manitou MLT733-115 telehandler, from the manufacturer’s spec sheet and published specifications.
- Capacity at Full Forward Reach
- 1.2 t
Performance 9 specs
| Max. Lifting Capacity | 7,275 lb (3,300 kg) |
|---|---|
| Max. Lifting Height | 22 ft 7 in (6.9 m) |
| Max. Outreach | 12 ft 10 in (3.9 m) |
| Reach at Max. Height | 2 ft 11 in (0.9 m) |
| Breakout Force with Bucket | 5,184 daN |
| Max. Travel Speed | 33 km/h |
| Lifting Time | 6.75 s |
| Lowering Time | 5.65 s |
| Capacity at Full Forward Reach | 1.2 t |
Dimensions 10 specs
| Overall Length to Carriage (with hitch) | 15 ft 8 in (4.78 m) |
|---|---|
| Overall Width | 7 ft 10 in (2.39 m) |
| Overall Height | 7 ft 10 in (2.38 m) |
| Wheelbase | 9 ft 3 in (2.81 m) |
| Front Overhang | 4 ft (1.21 m) |
| Ground Clearance | 1 ft 5 in (0.44 m) |
| External Turning Radius (over tyres) | 12 ft 11 in (3.93 m) |
| Tilt-down Angle | 134° |
| Tilt-up Angle | 12° |
| Standard Tyres | Alliance A580 460/70 R24 159A8 |
Weight 1 spec
| Unladen Weight (with forks) | 15,697 lb (7,120 kg) |
|---|
Power / Engine 5 specs
| Engine Model | TCD 3.6 L4 |
|---|---|
| Number of Cylinders | 4 |
| Engine Power | 116 hp (85 kW) |
| Max. Torque | 460 Nm @ 1,600 rpm |
| Drawbar Pull (laden) | 7,800 daN |
Hydraulics / Fluids 4 specs
| System Pressure | 3,626 PSI (250 bar) |
|---|---|
| Hydraulic Tank Capacity | 29.7 US gal (135 l) |
| Fuel Tank Capacity | 26.4 US gal (120 l) |
| Diesel Exhaust Fluid (AdBlue) Capacity | 2.2 US gal (10 l) |
