Telehandler · Manitou

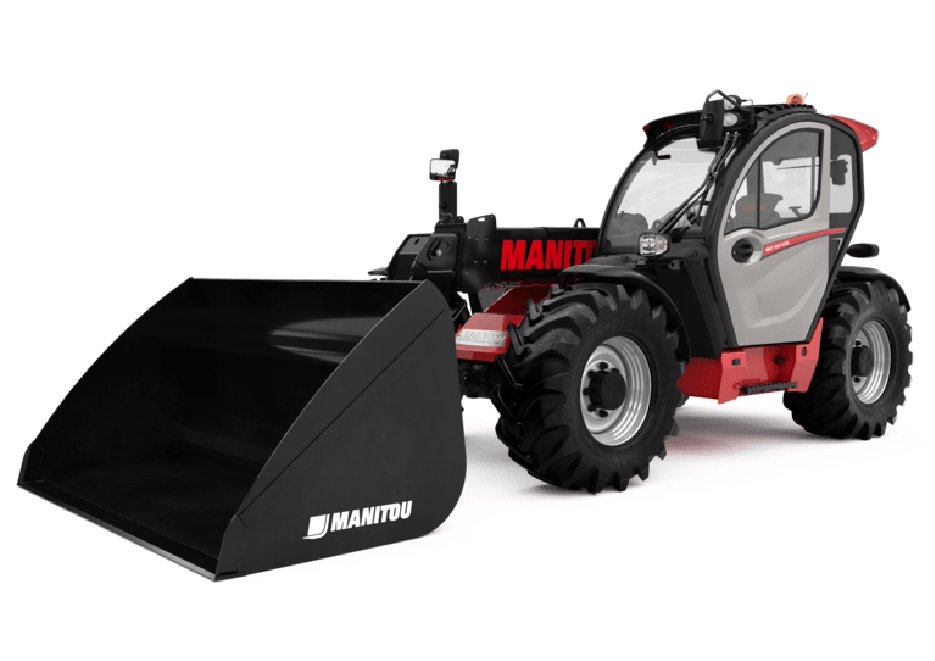

Manitou MLT733-115 LSU Specs
Quick-reference specifications for the Manitou MLT733-115 LSU telehandler, taken from the manufacturer’s spec sheet.
Performance 10 specs
| Max. capacity Q | 3300 kg |
|---|---|
| Max. outreach | 3.90 m |
| Reach at max. height | 0.90 m |
| Breakout force with bucket | 5184 daN |
| Tilt-down angle a | 134 ° |
| Tilt-up angle a | 12 ° |
| External turning radius (over tyres) Wa | 3.93 m |
| Lifting | 6.20 s |
| Lowering | 5.80 s |
| Drawbar pull (Laden) | 7800 daN |
Dimensions 10 specs
| Max. lifting height h | 6.90 m |
|---|---|
| Ground clearance m | 0.44 m |
| Wheelbase y | 2.81 m |
| Overall length to carriage (with hitch) l | 4.85 m |
| Overall length to carriage (without hitch) l | 4.77 m |
| Front overhang | 1.21 m |
| Overall width b | 2.39 m |
| Overall cab width b | 0.95 m |
| Overall height h | 2.38 m |
| Standard tires | Alliance – A580 – 460/70 R24 159A8 |
Weight 1 spec
| Unladen weight (with forks) | 7120 kg |
|---|
Power / Engine 6 specs
| Engine brand | Deutz |
|---|---|
| Engine norm | Stage V |
| Engine model | TCD 3.6 L4 |
| I.C. Engine power rating / Power | 116 Hp (85 kW) |
| Max. torque / Engine rotation | 460 Nm @1600 rpm |
| Transmission type | Torque converter |
Hydraulics / Fluids 4 specs
| Hydraulic pump type | Variable displacement pump |
|---|---|
| Hydraulic flow – Pressure | 150 l/min – 270 bar |
| Hydraulic tank capacity | 135 l |
| Fuel tank | 120 l |
