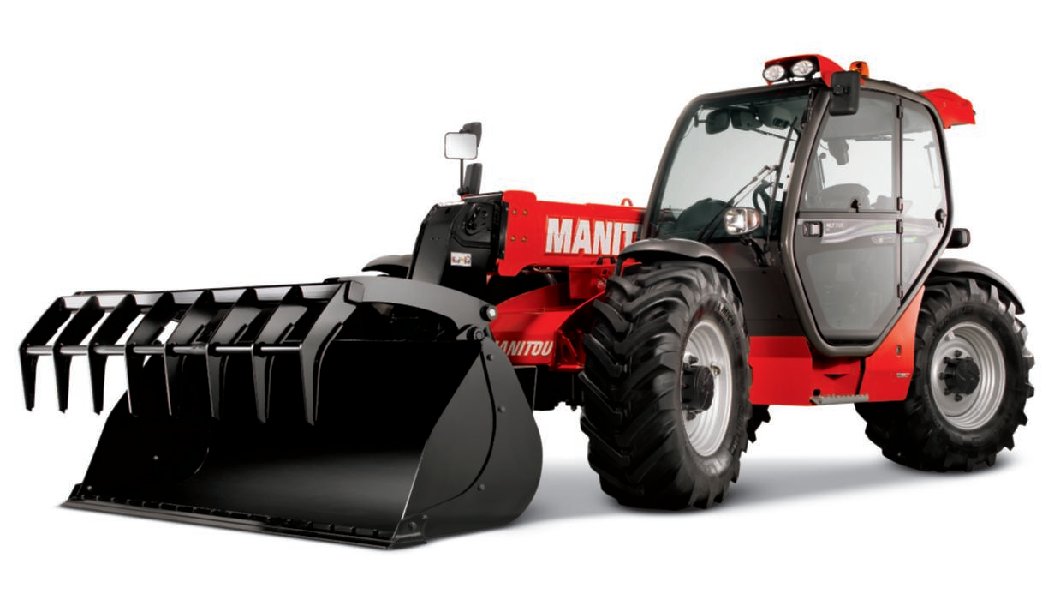

Manitou MLT735-120 PS Specs
Quick-reference specifications for the Manitou MLT735-120 PS telehandler, taken from the manufacturer’s spec sheet.
Performance 11 specs
| Max. capacity | 3500 kg |
|---|---|
| Max. outreach | 3.9 m |
| Reach at max. height | 1.03 m |
| Unladen time – Lifting | 7.3 secs |
| Unladen time – Lowering | 5.6 secs |
| Tyres | 460/70-24 |
| Laden drawbar pull | 8130 daN |
| Turning radius (over tyres) | 3.92 m |
| Noise at driving position (LpA) | 79 dB |
| Environmental noise (LwA) | 105 db |
| Vibration to whole hand/arm | <2.5 m/s² |
Dimensions 8 specs
| Max. lifting height | 6.9 m |
|---|---|
| Ground clearance | 0.44 m |
| Overall length to carriage | 4.87 m |
| Wheelbase | 2.81 m |
| Overall width of cab | 0.98 m |
| Overall width | 2.4 m |
| Overall height | 2.35 m |
| Standard forks (length x width x thickness) | 1200 x 125 x 50 mm |
Weight 1 spec
| Unladen weight (with forks) | 7080 kg |
|---|
Power / Engine 5 specs
| Engine | DEUTZ STAGE IIIB |
|---|---|
| Power | 122 HP (90 kW) |
| Max. torque | 465 Nm@1600 rpm |
| Transmission | torque converter |
| Capacities – Fuel | 120 l |
Hydraulics / Fluids 2 specs
| Pump | 150 l/min – 270 bar |
|---|---|
| Capacities – Hydraulic oil | 135 l |
