Telehandler · Manitou

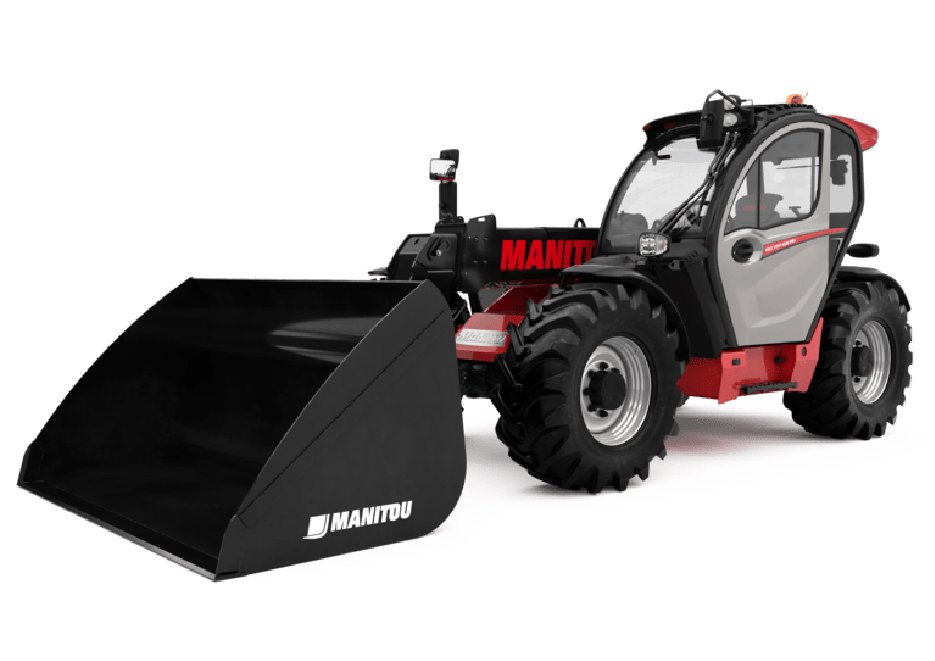

Manitou MLT737-130PS Specs
Quick-reference specifications for the Manitou MLT737-130PS telehandler, taken from the manufacturer’s spec sheet.
Performance 13 specs
| Max. capacity | 8157 lb |
|---|---|
| Max. outreach | 12 ft 10 in |
| Reach at max. height | 3 ft 3 in |
| Breakout force with bucket | 6236 daN |
| Tilt-down angle | 134 ° |
| Tilt-up angle | 12 ° |
| External turning radius (over tyres) | 12 ft 11 in |
| Lifting | 6.80 s |
| Lowering | 7.10 s |
| Drawbar pull (Laden) | 7800 daN |
| Noise to environment (LwA) | 105 dB |
| Vibration to whole hand/arm | < 2.50 m/s² |
| Safety cab homologation | ROPS – FOPS level 2 cab |
Dimensions 9 specs
| Max. lifting height | 22 ft 8 in |
|---|---|
| Ground clearance | 1 ft 4 in |
| Wheelbase | 9 ft 3 in |
| Overall length to carriage (with hitch) | 16 ft 4 in |
| Overall length to carriage (without hitch) | 15 ft 9 in |
| Front overhang | 4 ft |
| Overall cab width | 3 ft 1 in |
| Overall height | 7 ft 10 in |
| Standard tires | Alliance – A580 – 460/70 R24 159A8 |
Weight 1 spec
| Unladen weight (with forks) | 16865 lb |
|---|
Power / Engine 6 specs
| Engine brand | Deutz |
|---|---|
| Engine norm | Stage V |
| Engine model | TCD 3.6 L4 |
| I.C. Engine power rating / Power | 129 Hp (95 kW) |
| Transmission type | Torque converter |
| Parking brake | Automatic negative parking brake |
Hydraulics / Fluids 4 specs
| Hydraulic pump type | Variable displacement pump |
|---|---|
| Hydraulic flow – Pressure | 40 US gpm – 3916 PSI |
| Hydraulic oil | 36 US gal |
| Fuel tank | 32 US gal |
