Telehandler · Manitou

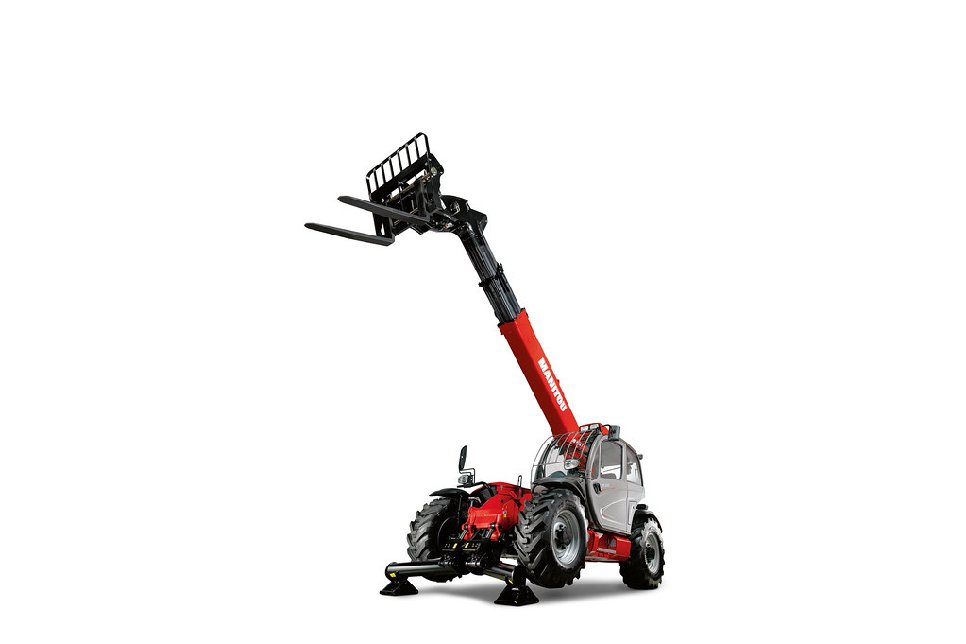

Manitou MT1335 Specs
Quick-reference specifications for the Manitou MT1335 telehandler, taken from the manufacturer’s spec sheet.
Performance 7 specs
| Max. capacity | 7700 lb (3500 kg) |
|---|---|
| Lifting | 10 s |
| Lowering | 8.50 s |
| Parking brake | Automatic negative parking brake |
| Noise at driving position (LpA) | 78 dB (A) |
| Noise to environment (LwA) | 103 dB (A) |
| Vibration on hands/arms | 2.5 m/s² |
Dimensions 2 specs
| Max. lift height | 41 ft 2 in (12.55 m) |
|---|---|
| Y – Wheelbase | 9 ft 5 in (2.88 m) |
Weight 2 specs
| Unladen weight (with forks) | 20020 lb (9200 kg) |
|---|---|
| Standard tyres | Pneumatic |
Power / Engine 3 specs
| Power | 100 hp (75 kW) |
|---|---|
| Transmission – Type | Torque Converter |
| Tank capacities – Fuel | 31.70 US gal (120 l) |
Hydraulics / Fluids 3 specs
| Type of pump | Gear pump |
|---|---|
| Hydraulic flow rate – Pressure | 33 gpm – 3916 psi (125 l/min – 270 bar) |
| Tank capacities – Hydraulic oil | 46.20 US gal (125 l) |
