Telehandler · Manitou

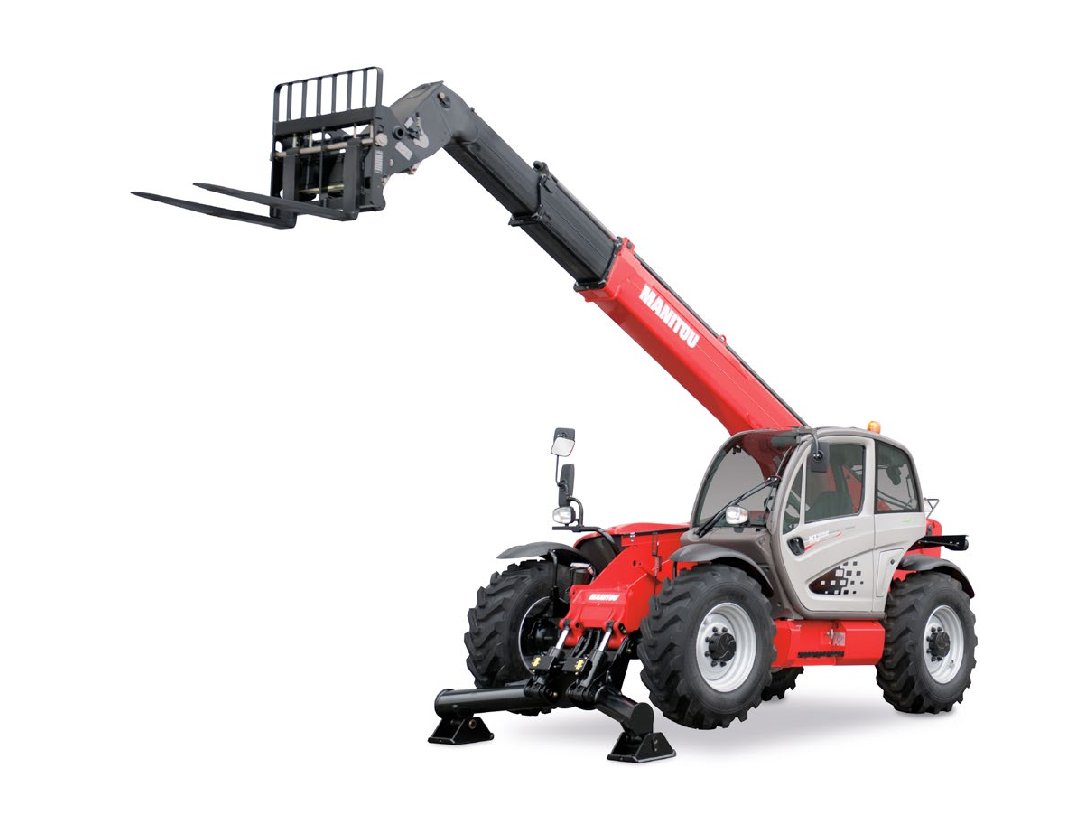

Manitou MT1335HA EASY Specs
Quick-reference specifications for the Manitou MT1335HA EASY telehandler, taken from the manufacturer’s spec sheet.
Performance 16 specs
| Max. capacity | 3500 kg |
|---|---|
| Max. outreach | 8.75 m |
| Unladen time – Lifting | 13.0 s |
| Unladen time – Lowering | 12.5 s |
| Tyres | 400 / 80 -24 |
| Service brake | oil immersed multi-disc braking |
| Parking brake | automatic negative parking brake |
| Laden drawbar pull | 8000 daN |
| Drive wheels | 4 wheel drive |
| Steering mode | 4 wheel steer – 3 steering modes |
| Max. travel speed | 25 kph |
| Turning radius (over tyres) | 3.65 m |
| Carriage rotation (crowd / dump) | 12° /114° |
| Noise at driving position (LpA) | 78 dB |
| Environmental noise (LwA) | 103 dB |
| Vibration to whole hand/arm | <2.50 m/s² |
Dimensions 11 specs
| Max. lifting height | 12.55 m |
|---|---|
| Front wheel centre to carriage | 1.80 m |
| Wheelbase | 2.88 m |
| Overall length to carriage | 5.86 m |
| Ground clearance | 0.42 m |
| Overall width of cab | 0.88 m |
| Inside tyre width | 1.87 m |
| Overall width | 2.28 m |
| Overall width (stabilizers lowered) | 2.28 m |
| Overall height | 2.42 m |
| Standard forks (length x width x thickness) | 1200 x 125 x 45 mm |
Weight 1 spec
| Unladen weight (with forks) | 9200 kg |
|---|
Power / Engine 5 specs
| Engine | DEUTZ – STAGE 3B – FINAL TIER 4 |
|---|---|
| Power | 75 HP (55.4 kW) |
| Max torque | 330 Nm |
| Transmission | hydrostatic |
| Fuel | 120 l |
Hydraulics / Fluids 1 spec
| Hydraulic oil | 125 l |
|---|
