Telehandler · Manitou

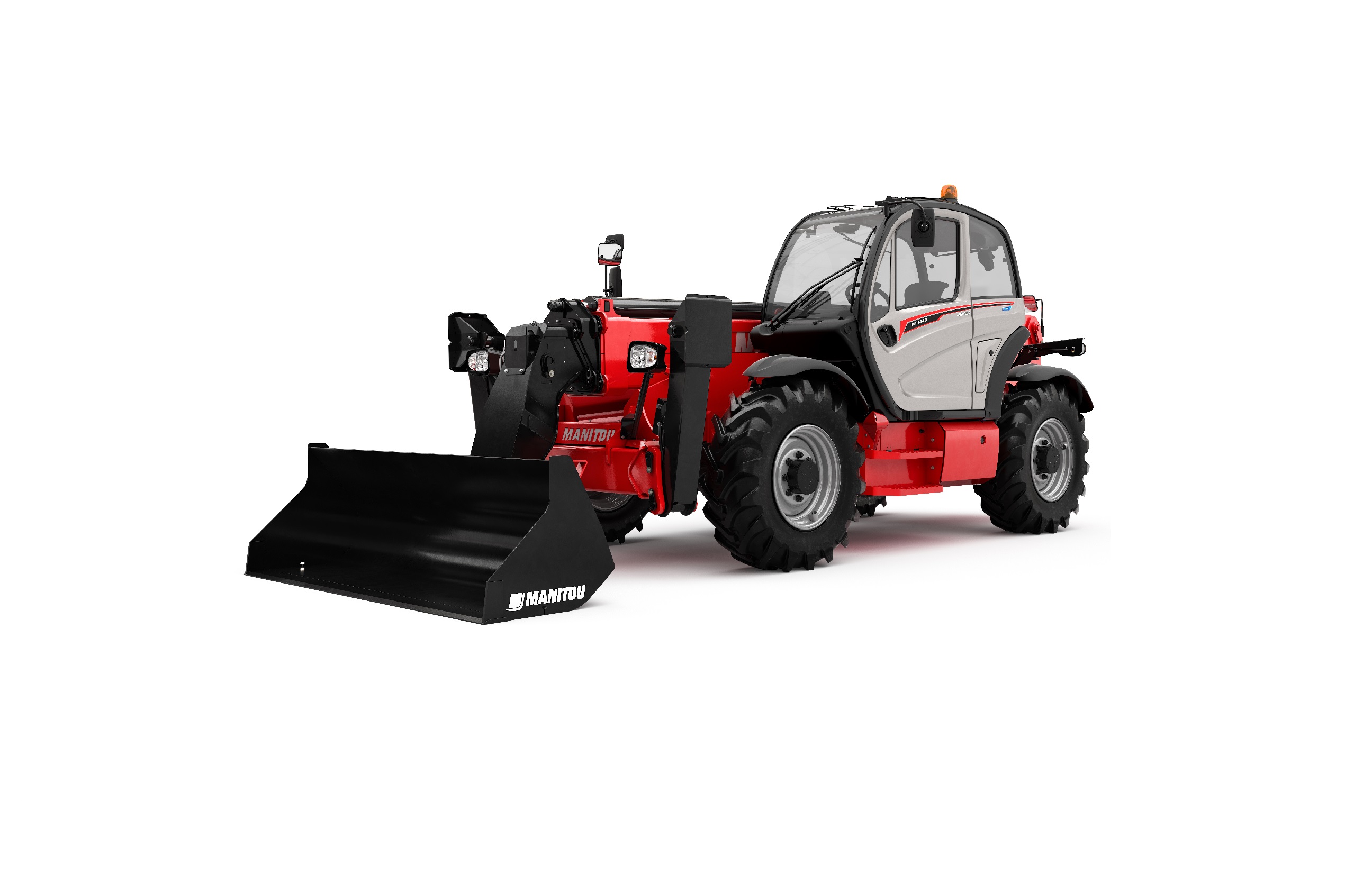

Manitou MT1440 Specs
Quick-reference specifications for the Manitou MT1440 telehandler, taken from the manufacturer’s spec sheet.
Performance 14 specs
| Max. capacity | 4000 kg |
|---|---|
| Max. outreach | 9.46 m |
| Unladen time – Lifting | 15.5 secs |
| Unladen time – Lowering | 11.6 secs |
| Tyres | 400/80-24 |
| Parking brake | automatic negative handbrake |
| Laden drawbar pull | 10700 daN |
| Steering mode | 4 wheel steer – 3 steering modes |
| Turning radius (over tyres) | 3.97 m |
| Frame levelling | +/- 9° |
| Carriage rotation (crowd/dump) | 12°/114° |
| Noise at driving position (LpA) | 82 dB |
| Environmental noise (LwA) | 106 dB |
| Vibration to whole hand/arm | <2.5 m/s² |
Dimensions 11 specs
| Max. lifting height | 13.53 m |
|---|---|
| Front wheel centre to carriage | 1.90 m |
| Wheelbase | 3.07 m |
| Overall length to carriage | 6.13 m |
| Ground clearance | 0.37 m |
| Overall width of cab | 0.89 m |
| Inside tyre width | 1.96 m |
| Overall width | 2.37 m |
| Overall width (stabilizers lowered) | 3.79 m |
| Overall height | 2.45 m |
| Standard forks (length x width x thickness) | 1200 x 125 x 50 mm |
Weight 1 spec
| Unladen weight (with forks) | 10900 kg |
|---|
Power / Engine 5 specs
| Engine | PERKINS – STAGE 3B |
|---|---|
| Power | 102 HP (75 kW) |
| Max. torque | 420 Nm – 1400 rpm |
| Transmission | torque converter 4 wheel drive |
| Fuel | 140 l |
Hydraulics / Fluids 1 spec
| Hydraulic oil | 135 l |
|---|
