Telehandler · Manitou

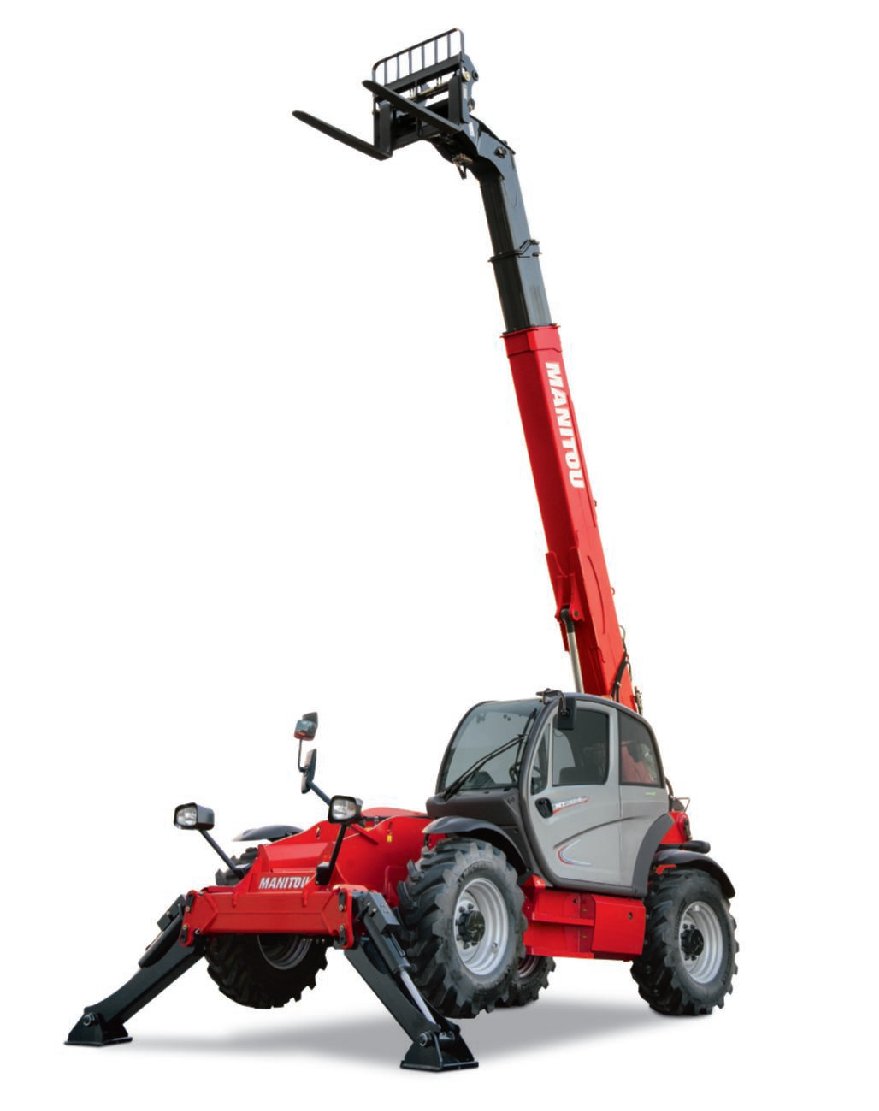

Manitou MT1435 Specs
Quick-reference specifications for the Manitou MT1435 telehandler, taken from the manufacturer’s spec sheet.
Performance 10 specs
| Max. capacity | 3500 kg |
|---|---|
| Max. outreach | 9.52 m |
| Steering mode | 4 wheel steer – 3 steering modes |
| Unladen weight (withforks) | 9,700 kg |
| Turning radius (overtyres) | 3.97 m |
| Carriage rotation (crowd/dump) | 12°/114° |
| Noise at driving position (LpA) | 82 dB |
| Environmental noise (LwA) | 106 dB |
| Vibration to whole hand/arm | <2.5 m/s² |
| Machine on stabilizers with forks | 50° |
Dimensions 8 specs
| Max. lifting height | 13.52 m |
|---|---|
| Front wheel centre to carriage | 1.90 m |
| Wheelbase | 3.07 m |
| Overall length to carriage | 6.13 m |
| Overall width of cab | 0.89 m |
| Inside tyre width | 1.96 m |
| Overall width | 2.37 m |
| Standard forks (lengthxwidthxthickness) | 1200 x 125 x 50 mm |
Power / Engine 1 spec
| Max. torque | 420 Nm – 1400 tr/min |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic oil | 135 l |
|---|
