Telehandler · Merlo

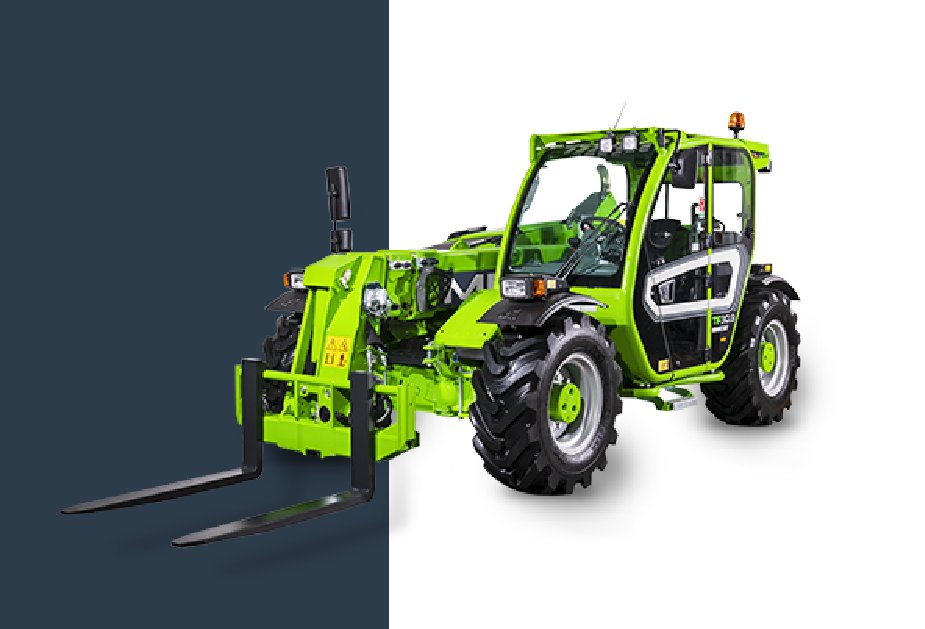

Merlo TF33.7-115 Specs
Quick-reference specifications for the Merlo TF33.7-115 telehandler, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Capacity
- 7,275 lb3.3 t
- Capacity at Full Forward Reach
- 2,976 lb1.35 t
- Operating Weight
- 14,330-14,770 lb6.5-6.7 t
Performance 8 specs
| Maximum Lift Capacity | 7,275 lb (3.3 t) |
|---|---|
| Nominal Load at Center of Gravity | 7,275 lb (3.3 t) |
| Maximum Horizontal Reach | 11.48 ft (3.5 m) |
| Lifting Height | 21.65-21.98 ft (6.6-6.7 m) |
| Capacity at Full Forward Reach | 2,976 lb (1.35 t) |
| Capacity at Full Lift Height | 5,732 lb (2.6 t) |
| Travel Speed | 24.85 mph (40 km/h) |
| Maximum Climbing Ability | 45% |
Dimensions 4 specs
| Transport Length | 13.93-14.14 ft (4.245-4.31 m) |
|---|---|
| Transport Width | 6.89 ft (2.1 m) |
| Transport Height | 6.96 ft (2.12 m) |
| Wheelbase | 9.0 ft (2,740 mm) |
Weight 3 specs
| Operating Weight | 14,330-14,770 lb (6.5-6.7 t) |
|---|---|
| Weight with Forks | 14,330 lb (6.5 t) |
| Weight without Forks | 13,956 lb (6.33 t) |
Power / Engine 5 specs
| Engine Type | TCD3.6 L4 |
|---|---|
| Displacement | 219.5 cu in (3.6 l) |
| Power Output | 115 HP (85 kW) |
| Number of Cylinders | 4 |
| Cylinder Bore x Stroke | 98×120 mm |
Hydraulics / Fluids 3 specs
| Transmission Speed | 40 km/h |
|---|---|
| Hydraulic Oil | Mineral HVI 46 |
| Standard Tyres | 400/70-20 or 405/70-20 14 PR |
