Telehandler · Merlo

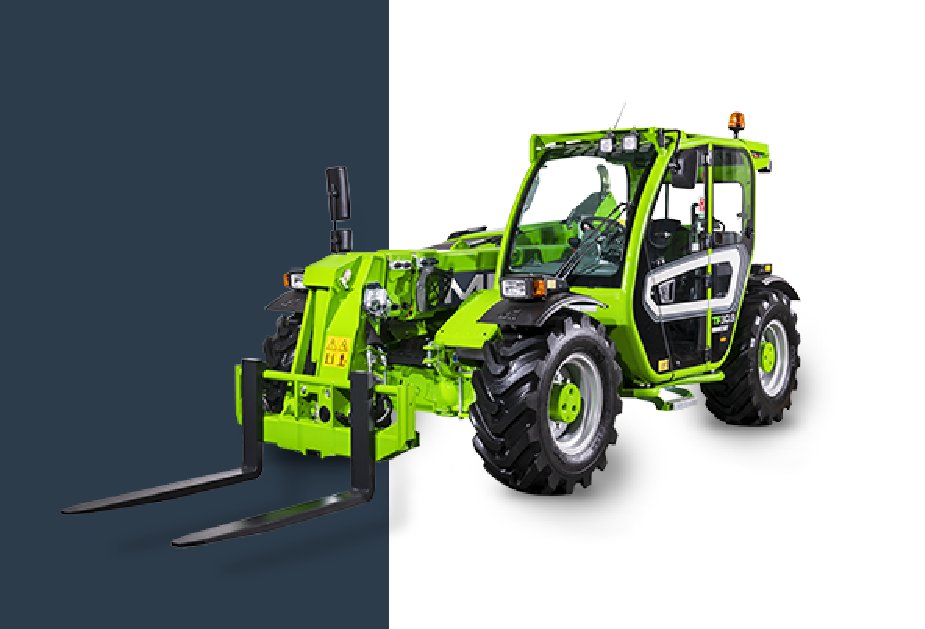

Merlo TF33.7-G Specs
Quick-reference specifications for the Merlo TF33.7-G telehandler, from the manufacturer’s spec sheet and published specifications.
- Lift Capacity (nominal at COG)
- 7,275 lb3,300 kg
- Capacity at Full Lift Height
- 2.6 tons5,729 lb
Performance 5 specs
| Lift Capacity (nominal at COG) | 7,275 lb (3,300 kg) |
|---|---|
| Capacity at Full Lift Height | 2.6 tons (5,729 lb) |
| Capacity at Full Forward Reach | 1.35 tons (2,976 lb) |
| Travel Speed | 24.9 mph (40 km/h) |
| Maximum Climb Gradient | 45% |
Dimensions 5 specs
| Lifting Height | 21.7 ft (6.6 m) |
|---|---|
| Maximum Horizontal Reach | 11.5 ft (3.5 m) |
| Transport Length | 14.1 ft (4.31 m) |
| Transport Width | 6.9 ft (2.1 m) |
| Transport Height | 7.0 ft (2.12 m) |
Weight 1 spec
| Unladen Weight | 6.4 tons (14,110 lb) |
|---|
Power / Engine 4 specs
| Engine Type | KDI2504 TCR |
|---|---|
| Engine Power | 75 hp (55 kW) |
| Engine Displacement | 2.5 L |
| Number of Cylinders | 4 |
Hydraulics / Fluids 1 spec
| Standard Tyres | 400/70-20 |
|---|
