Aerial Lift · Niftylift

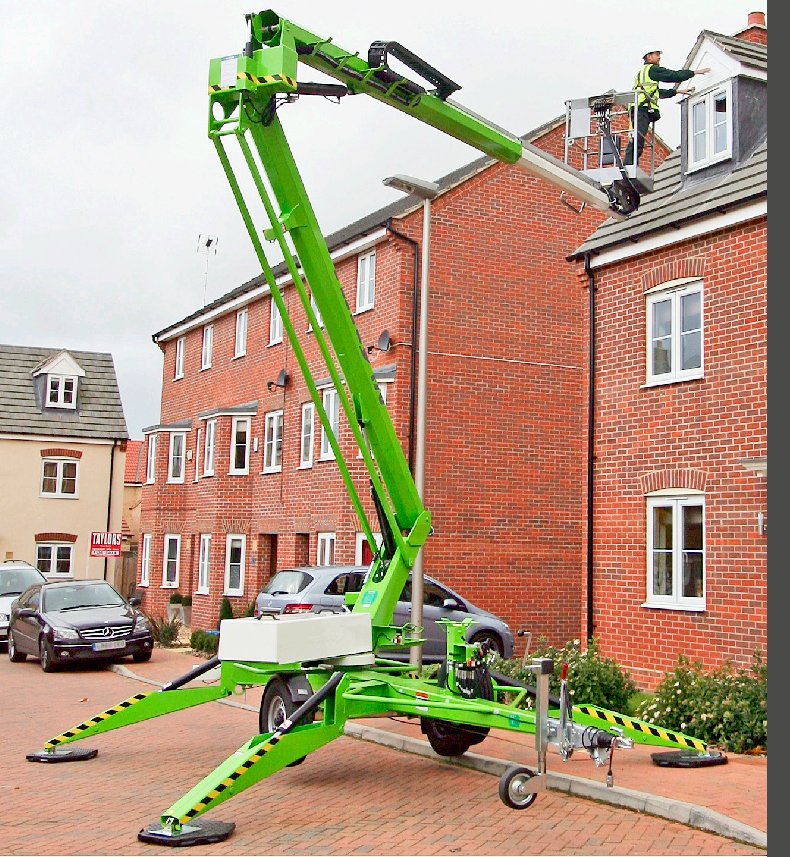

Niftylift 170 Specs
Quick-reference specifications for the Niftylift 170 aerial lift, compiled from published specifications.
- Platform Height
- 49 ft 6 in15.1 m
- Working Height
- 56 ft17.1 m
Performance 9 specs
| Working Height | 56 ft (17.1 m) |
|---|---|
| Platform Height | 49 ft 6 in (15.1 m) |
| Working Outreach | 28 ft 6 in (8.7 m) |
| Safe Working Load | 440 lb (200 kg) |
| Platform Rotation | 180° |
| Turret Rotation | 360° |
| Maximum Slope | 14% / 8° |
| Persons Capacity | 2 |
| Maximum Travel Speed | 50 mph (80 kph) |
Dimensions 7 specs
| Machine Length | 20 ft 4 in (6.2 m) |
|---|---|
| Machine Width | 5 ft 5 in (1.65 m) |
| Machine Height | 7 ft (2.15 m) |
| Working Width | 14 ft 5 in (4.4 m) |
| Platform Length | 3 ft 7 in (1.1 m) |
| Platform Width | 2 ft 2 in (0.65 m) |
| Ground Clearance | 10.25 in (260 mm) |
Weight 2 specs
| Minimum Weight | 4760 lb (2160 kg) |
|---|---|
| Maximum Gross Vehicle Weight | 5070 lb (2300 kg) |
Power / Engine 1 spec
| Hydraulic Pressure | 2900 PSI (200 bar) |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic Control Levers | 4 or 5 lever options available |
|---|
