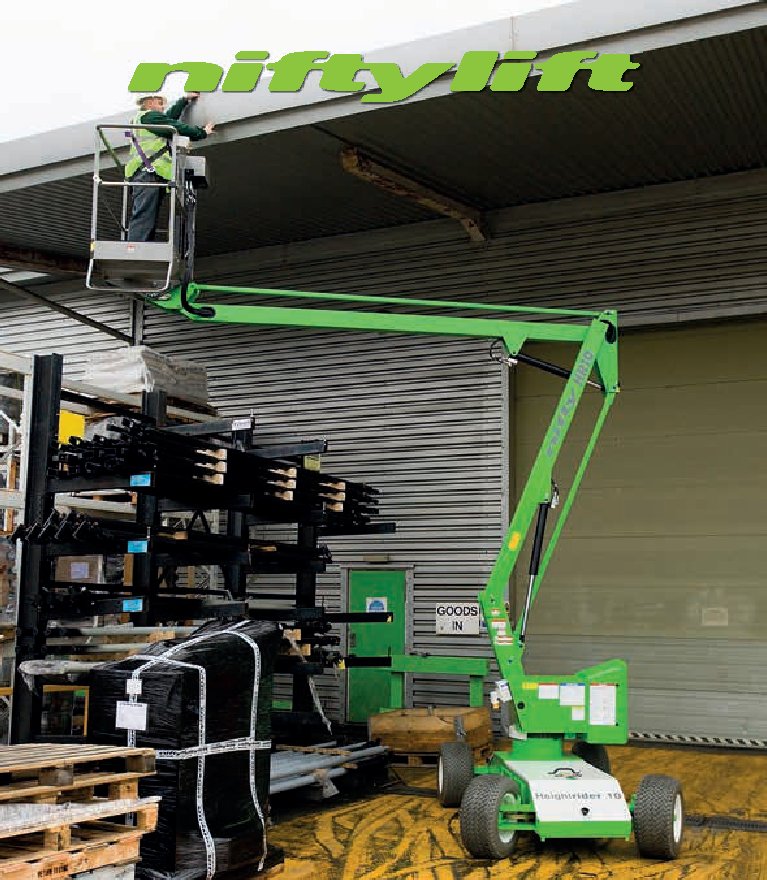

Aerial Lift · Niftylift
Niftylift HR10 Specs
Quick-reference specifications for the Niftylift HR10 aerial lift, taken from the manufacturer’s spec sheet.
- Platform Height (B)
- 26 ft 6 in8 m
- Working Height (A)
- 33 ft10 m
- Gradeability
- 25% / 14º
Performance 4 specs
| Working Height (A) | 33 ft (10 m) |
|---|---|
| Horizontal Outreach (C) | 15 ft (4.5 m) |
| Drive Speed | 2.1 mph (3.4 km/h) |
| Gradeability | 25% / 14º |
Dimensions 6 specs
| Platform Height (B) | 26 ft 6 in (8 m) |
|---|---|
| Platform Size | 3 ft 7 in x 2 ft 2 in (1.1 m x 0.65 m) |
| Stowed Height (D) | 6 ft 7 in (2 m) |
| Width (F) | 4 ft 11 in (1.5 m) |
| Length (J) | 13 ft 11 in (4.25 m) |
| Ground Clearance | 13 ft 9 in (4.2 m) |
Weight 2 specs
| Safe Working Load | 440 lb (200 kg) |
|---|---|
| Machine Weight | 4850 lb (2200 kg) |
