Aerial Lift · Niftylift

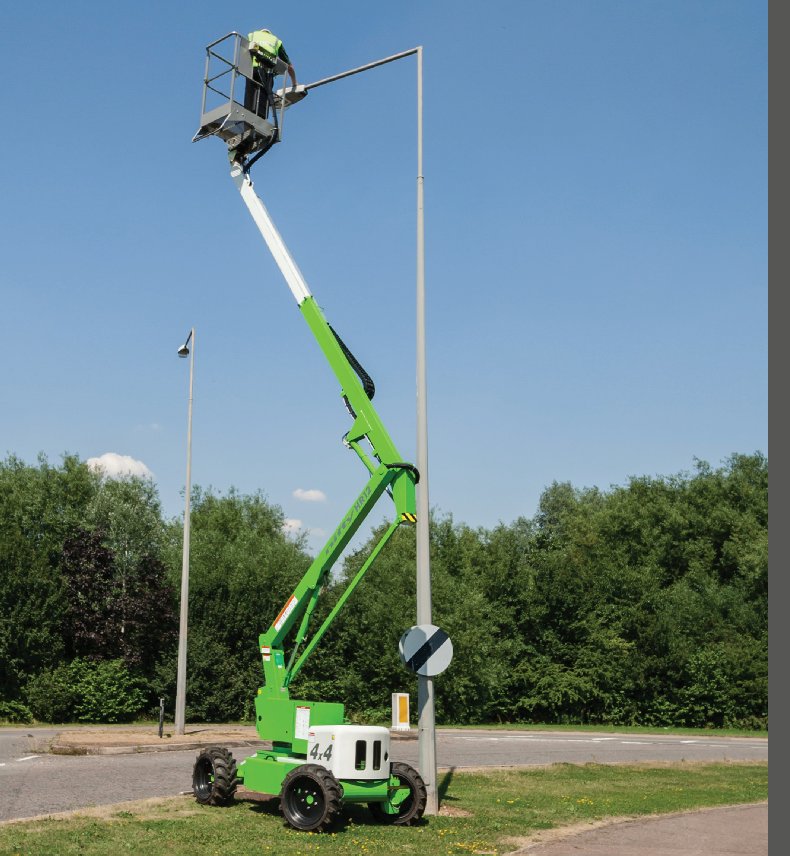

Niftylift HR12N Specs
Quick-reference specifications for the Niftylift HR12N aerial lift, compiled from published specifications.
- Platform Capacity
- 440 lb200 kg
- Platform Height
- 33 ft 6 in10.2 m
- Working Height
- 39 ft 6 in12.1 m
- Typical Operating Weight (electric)
- 3435 kg
Performance 8 specs
| Working Height | 39 ft 6 in (12.1 m) |
|---|---|
| Working Outreach | 21 ft (6.4 m) |
| Safe Working Load (SWL) | 500 lb (225 kg) |
| Platform Capacity | 440 lb (200 kg) |
| Travel Speed | 3.7 mph (6 km/h) |
| Gradeability | 25% / 14° |
| Turning Radius | 10 ft 10 in (3.3 m) |
| Turret Rotation | 355° |
Dimensions 6 specs
| Machine Length (stowed) | 13 ft 3 in (4.05 m) |
|---|---|
| Machine Width | 4 ft 11 in (1.5 m) |
| Machine Height (stowed) | 6 ft 6 in (1.98 m) |
| Platform Height | 33 ft 6 in (10.2 m) |
| Platform Size | 25 in × 44 in (0.65 m × 1.1 m) |
| Wheelbase | 6 ft 3 in (1.9 m) |
Weight 2 specs
| Minimum Weight | 7670 lb (3480 kg) |
|---|---|
| Typical Operating Weight (electric) | 3435 kg |
