Aerial Lift · Niftylift

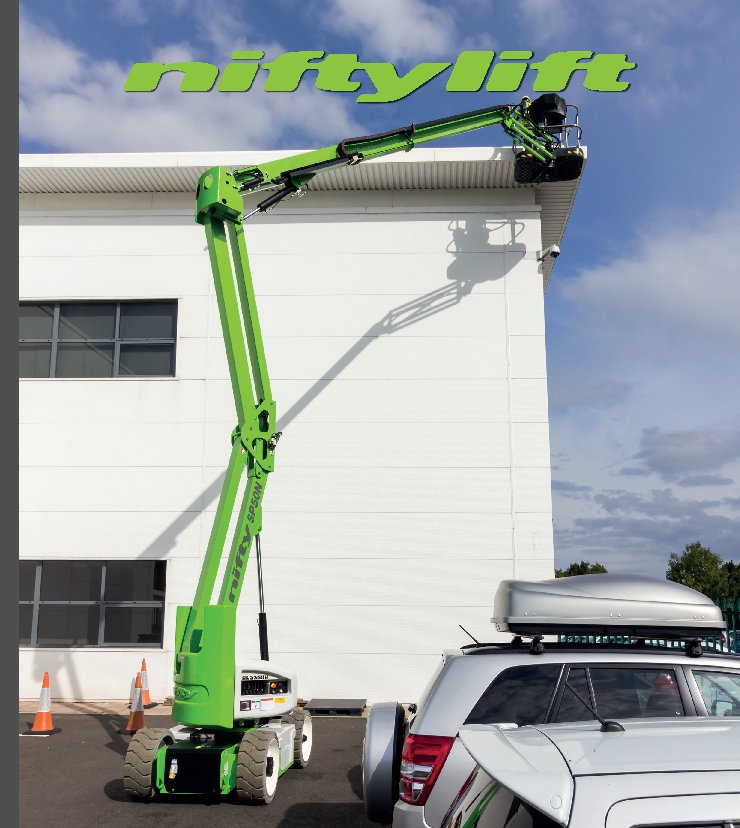

Niftylift SP50 Specs
Quick-reference specifications for the Niftylift SP50 aerial lift, compiled from published specifications.
- Platform Height
- 50 ft
- Working Height
- 56 ft 6 in
- Minimum Operating Weight
- 11,290 lb5,120 kg
- Gradeability
- 45%24°
Performance 9 specs
| Platform Height | 50 ft |
|---|---|
| Working Height | 56 ft 6 in |
| Working Outreach | 31 ft |
| Safe Working Load | 500 lb |
| Travel Speed | 3.7 mph |
| Gradeability | 45% (24°) |
| Turning Radius (outside) | 12 ft 2 in |
| Basket Rotation | 180° |
| Jib Boom Arc | 150° |
Dimensions 6 specs
| Machine Length | 20 ft 10 in (6.35 m) |
|---|---|
| Machine Width | 6 ft 7 in (2.01 m) |
| Machine Height | 6 ft 11 in (2.11 m) |
| Transport Length | 15 ft 9 in (4.8 m) |
| Basket Width | 5 ft 11 in (1.8 m) |
| Basket Depth | 2 ft 9 in (0.84 m) |
Weight 1 spec
| Minimum Operating Weight | 11,290 lb (5,120 kg) |
|---|
Power / Engine 1 spec
| Horsepower | 25 hp (18.5 kW) |
|---|
Hydraulics / Fluids 2 specs
| Hydraulic Pressure (Booms) | 3,000 psi |
|---|---|
| Hydraulic Pressure (Drive) | 4,060 psi |
