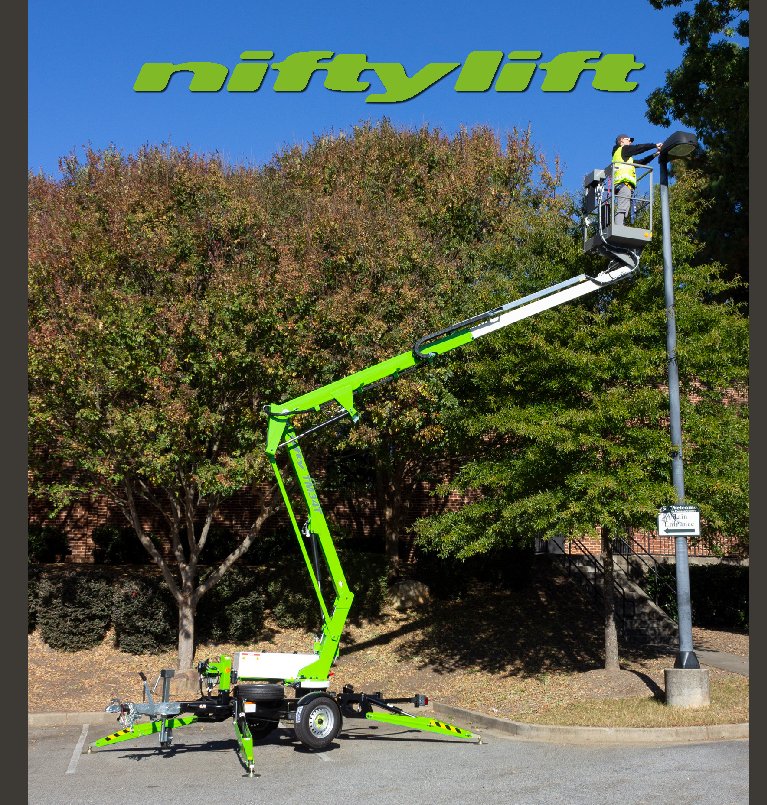

Niftylift TM34T Specs

Quick-reference specifications for the Niftylift TM34T aerial lift, compiled from published specifications.

Platform Height: 33 ft 6 in10.2 m
Maximum Working Height: 40 ft12.2 m

Performance 7 specs

Maximum Working Height	40 ft (12.2 m)
Platform Height	33 ft 6 in (10.2 m)
Maximum Outreach	20 ft 1 in (6.1 m)
Safe Working Load	500 lb (227 kg)
Maximum Travel Speed	50 mph (80 km/h)
Turret Rotation	360°
Maximum Slope	11% / 6°

Dimensions 7 specs

Machine Length (Stowed)	14 ft 7 in (4.45 m)
Machine Width	4 ft 11 in (1.5 m)
Machine Height (Stowed)	6 ft 3 in (1.9 m)
Working Width	11 ft 8 in (3.55 m)
Basket Width	3 ft 7 in (1.1 m)
Basket Depth	2 ft 2 in (0.65 m)
Ground Clearance	10.5 in (26 cm)

Weight 2 specs

Minimum Weight	3,110 lb (1,406 kg)
Gross Vehicle Weight (Maximum)	2,860 lb (1,300 kg)

Power / Engine 2 specs

Gasoline Engine	Honda GX160
Diesel Engine	Yanmar L40 or Kubota OC60

Hydraulics / Fluids 2 specs

Hydraulic Pressure	2,900 psi (200 bar)
Tire Pressure	65 psi (4.5 bar)
