Aerial Lift · Niftylift

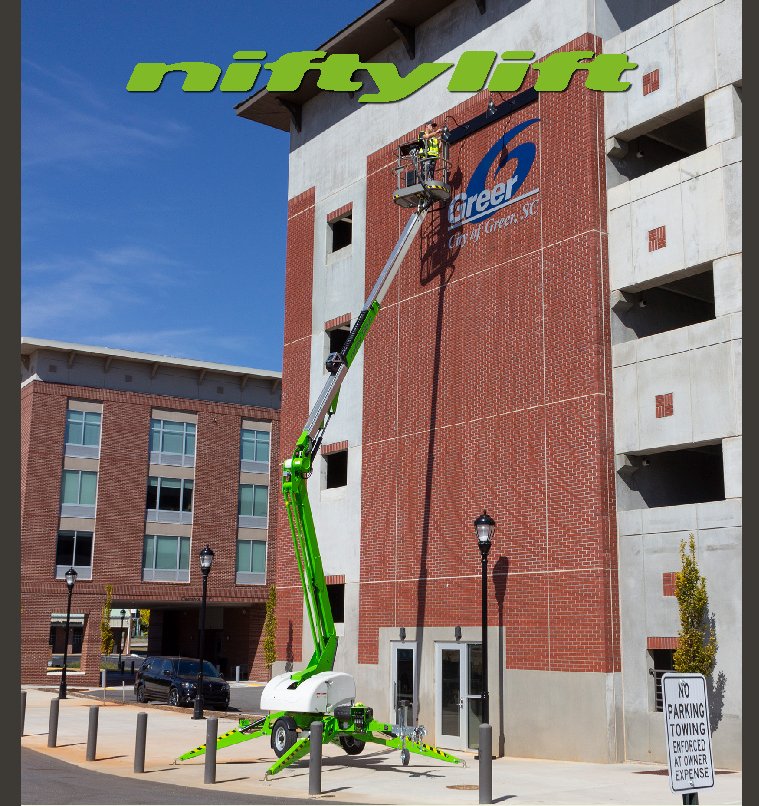

Niftylift TM42T Specs
Quick-reference specifications for the Niftylift TM42T aerial lift, compiled from published specifications.
- Platform Height
- 42 ft12.80 m
- Working Height
- 48 ft 6 in14.78 m
Performance 8 specs
| Platform Height | 42 ft (12.80 m) |
|---|---|
| Working Height | 48 ft 6 in (14.78 m) |
| Working Outreach | 25 ft (7.62 m) |
| Safe Working Load (Capacity) | 500 lb (227 kg) |
| Maximum Slope | 23% / 13° |
| Turret Rotation | 400° |
| Ground Clearance | 8.5 in |
| Maximum Ground Pressure | 45 PSI |
Dimensions 7 specs
| Machine Length (Stowed) | 18 ft 3 in |
|---|---|
| Machine Width | 5 ft 3 in |
| Machine Height (Stowed) | 6 ft 7 in |
| Working Width (Outriggers Extended) | 12 ft 6 in |
| Basket Width | 4 ft 7 in |
| Basket Depth | 2 ft 4 in |
| Basket Size (Metric) | 1.4 m x 0.71 m |
Weight 2 specs
| Minimum Weight | 3,915 lb (1,776 kg) |
|---|---|
| Gross Vehicle Weight (Maximum) | 3,757–3,978 lb |
Power / Engine 3 specs
| Gasoline Engine Option | Honda GX160 Engine |
|---|---|
| Tire Size | 185 R14C 8PR |
| Tire Pressure | 65 psi (4.5 bar) |
Hydraulics / Fluids 2 specs
| Hydraulic Pressure | 210 Bar (3,045 psi) |
|---|---|
| Hydraulic Fluid Grade | ISO Grade 32 |
