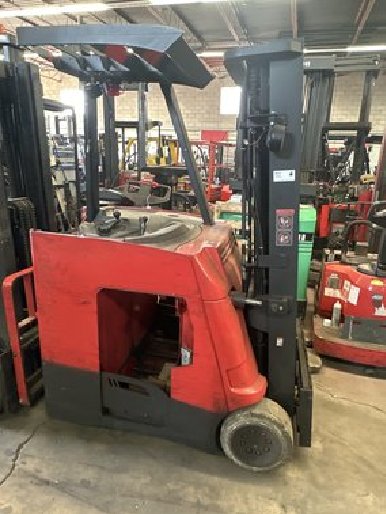

Raymond 425C35TT Specs
Quick-reference specifications for the Raymond 425C35TT forklift, compiled from published specifications.
Performance 5 specs
| Load Capacity | 3,500 lb (1,587 kg) |
|---|---|
| Load Center | 24 in (610 mm) |
| Travel Speed | 7.5 mph |
| Mast Tilt Forward | 3 degrees |
| Mast Tilt Backward | 5 degrees |
Dimensions 9 specs
| Width (standard tires) | 41 in (1,041 mm) |
|---|---|
| Height to Top of Overhead Guard | 88 in (2,235 mm) |
| Mast Height Lowered | 88 in |
| Mast Height Raised (typical) | 203 in |
| Turning Radius (13.5 in battery box) | 53.1 in (1,349 mm) |
| Turning Radius (16.25 in battery box) | 55.8 in (1,417 mm) |
| Turning Radius (18.25 in battery box) | 57.8 in (1,468 mm) |
| Front Tire Size | 16.25x6x11.25 |
| Rear Tire Size | 10x5x |
Power / Engine 1 spec
| Voltage | 36 Volts |
|---|
